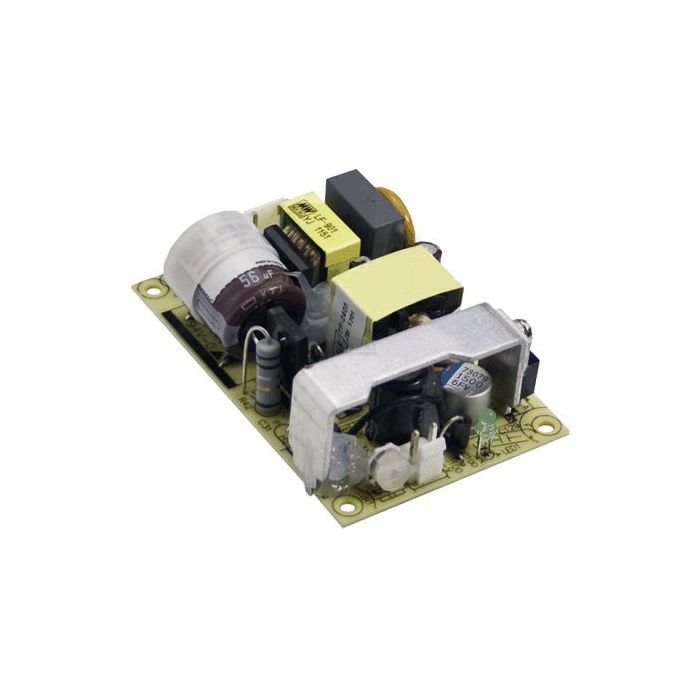

GESCHAKELDE VOEDING SINGLE OUTPUT 24W 24V/1.0A
€ 19,95
€ 16,49
Artikelnummer
EPS2524
- ArtikelnummerEPS2524
- MerkMEANWELL
- Aantal 3+ € 18,95 € 15,66
Features
| • Open frame • Compact case, 3" x 2" • Contact pin for nylon-crimp terminals • Universal input • Overload protection, pulsing hiccup shutdown, auto recovery • Protections: short circuit/over load/over voltage • Low no load power consumption |
 |
| Technical Specifications |
|
|
| Input Voltage: | 85...264V AC (47...63Hz) |
| 120...370V DC | |
| Input Inrush Current, Max.: | 35A |
| Leakage Current, Max.: | 1mA |
| Over Load Protection: | 115...170% |
| Withstand Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -30...+70°C |
| Weight: | 81g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| EPS-25-3.3 | 3,3 | 0...5,5 | 16,5 | 2 | 60 | 79 |
| EPS-25-5 | 5 | 0...5,5 | 25 | 2 | 60 | 81 |
| EPS-25-7.5 | 7,5 | 0...3,74 | 25,5 | 2 | 80 | 83 |
| EPS-25-12 | 12 | 0...2,34 | 25,2 | 1 | 100 | 86 |
| EPS-25-15 | 15 | 0...1,87 | 25,5 | 1 | 100 | 87 |
| EPS-25-24 | 24 | 0...1,17 | 25,2 | 1 | 180 | 88 |
| EPS-25-27 | 27 | 0...1,05 | 25,65 | 1 | 180 | 89 |
| EPS-25-36 | 36 | 0...0,78 | 25,2 | 1 | 200 | 89 |
| EPS-25-48 | 48 | 0...0,59 | 25,44 | 1 | 240 | 90 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
