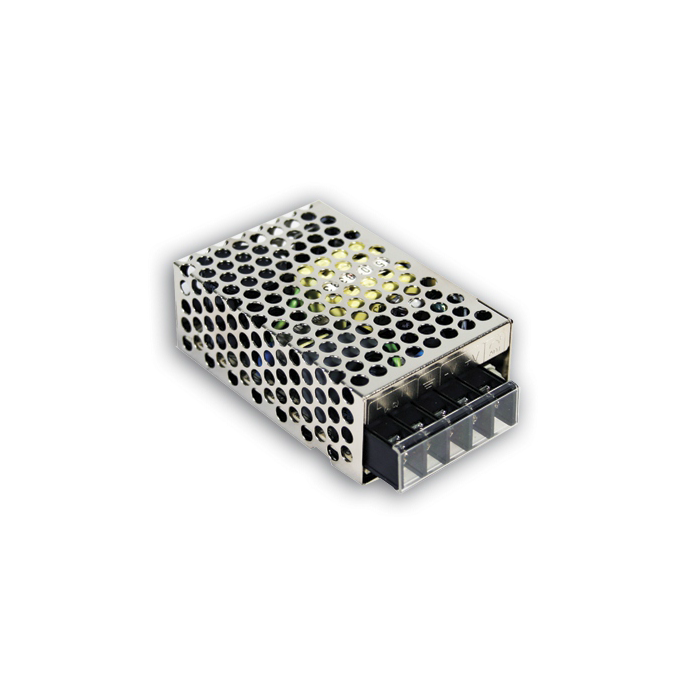

GESCHAKELDE VOEDING SINGLE OUTPUT 20W 3.3V/6A

OUTPUT:
DC VOLTAGE 3.3V
RATED CURRENT 6A
CURRENT RANGE 0 ~ A
RATED POWER 19.8W
Features
• Enclosed case, screw terminals
• Universal input
• Overload protection, pulsing hiccup shutdown, auto recovery
• Protections: short circuit/over load/over voltage
• Long life 105°C electrolytic capacitors
Technical Specifications

Input Voltage: 88...264V AC (47...63Hz) 125...373V DC
Input Inrush Current, Max.: 30A
Leakage Current, Max.: 2mA
Output Voltage Adjustment: +10/-5%
Over Load Protection: 110...180%

Withstand Voltage
I/P-O/P: 3000V AC
I/P-FG: 1500V AC
O/P-FG: 500V AC
Operating Temperature: -20...+70°C
Weight: 200g
