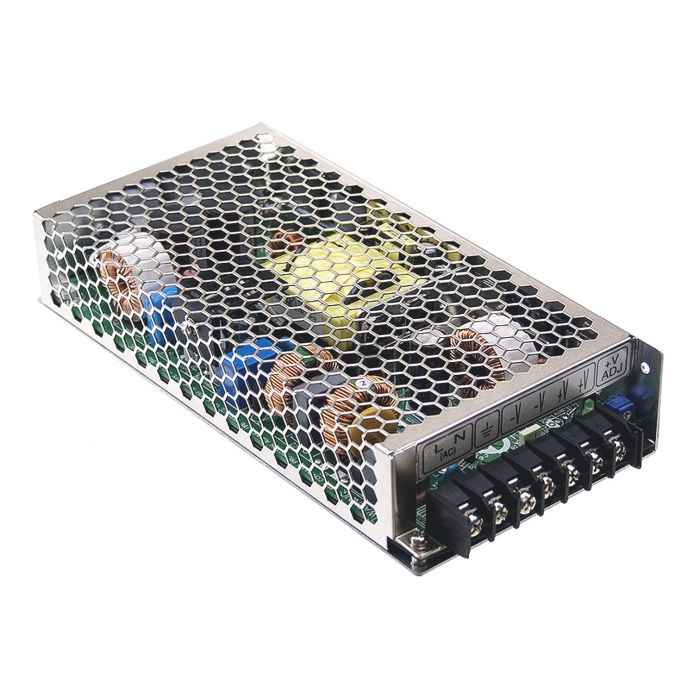

GESCHAKELDE VOEDING SINGLE OUTPUT 200W 27V/7.5A PFC

• Enclosed case, screw terminals • Universal input • Withstands 300V AC surge input for 5s • Overload protection, current limiting, auto recovery • Protections: short circuit/over load/over voltage • Built-in active PFC function • Low profile • Built-in remote sense function

HRPG-200

Same as HRP-200 but additional: • Built-in remote On/Off control • Low no load power consumption • Built-in auxiliary power, Stand-by 5V/0,3A

Input Voltage:	85...264V AC (47...63Hz)
120...370V DC
Input Inrush Current, Max.:	70A
Leakage Current, Max.:	1,2mA
Over Load Protection:	105...135%
Withstand Voltage
I/P-O/P:	3000V AC
I/P-FG:	2000V AC
O/P-FG:	500V AC
Operating Temperature:	-40...+70°C
Weight:	770g
I/P = Input, O/P = Output, FG = Frame Ground

U_A = Output Voltage, I_A = Output Current Range, P_A = Output Power, U_adj = Output Voltage Adjustment, DU_A = Output Voltage Tolerance, U_RN = Ripple & Noise, h= Efficiency

HRP-200
