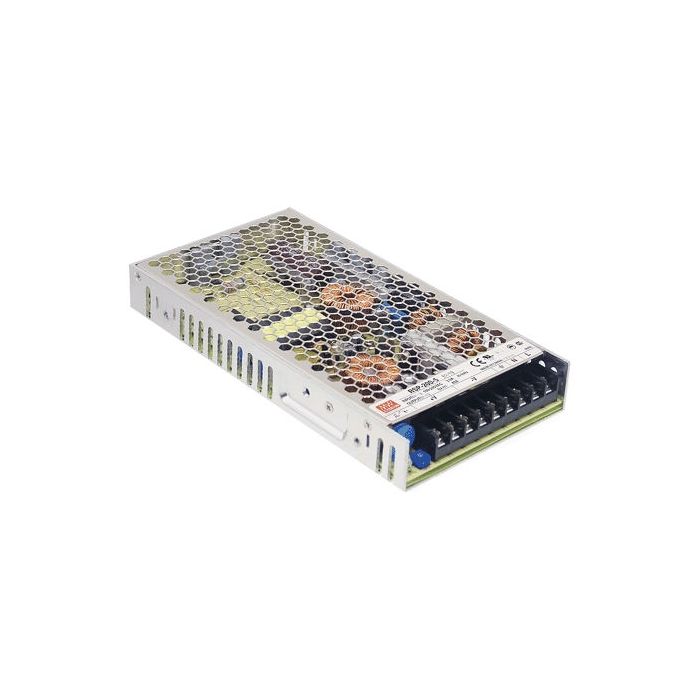

GESCHAKELDE VOEDING SINGLE OUTPUT 200W 24V/8.4A
€ 64,95
€ 53,68
Artikelnummer
RSP20024
- ArtikelnummerRSP20024
- MerkMEANWELL
- Aantal 3+ € 61,70 € 50,99
Features
| • Enclosed case, screw terminals • Universal input • Overload protection, pulsing hiccup shutdown, auto recovery • Protections: short circuit/over load/over voltage • Built-in active PFC function • Low profile |
 |
| Technical Specifications |
|
|
| Input Voltage: | 88...264V AC (47...63Hz) |
| 124...370V DC | |
| Input Inrush Current, Max.: | 40A |
| Leakage Current, Max.: | 1mA |
| Output Voltage Adjustment: | ±10% |
| Over Load Protection: | 105...135% |
| Withstand Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -30...+70°C |
| Weight: | 720g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| RSP-200-2.5 | 2,5 | 0...40 | 100 | 2 | 100 | 79,5 |
| RSP-200-3.3 | 3,3 | 0...40 | 132 | 2 | 100 | 81,5 |
| RSP-200-4 | 4 | 0...40 | 160 | 2 | 100 | 84 |
| RSP-200-5 | 5 | 0...40 | 200 | 2 | 150 | 85,5 |
| RSP-200-7.5 | 7,5 | 0...26,7 | 200,25 | 2 | 150 | 89 |
| RSP-200-12 | 12 | 0...16,7 | 200,4 | 1 | 150 | 89 |
| RSP-200-13.5 | 13,5 | 0...14,9 | 201,15 | 1 | 150 | 89 |
| RSP-200-15 | 15 | 0...13,4 | 201 | 1 | 150 | 89,5 |
| RSP-200-24 | 24 | 0...8,4 | 201,6 | 1 | 150 | 89,5 |
| RSP-200-27 | 27 | 0...7,5 | 202,5 | 1 | 200 | 89 |
| RSP-200-36 | 36 | 0...5,56 | 200,16 | 1 | 220 | 90 |
| RSP-200-48 | 48 | 0...4,2 | 201,6 | 1 | 240 | 90 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, Uadj = Output Voltage Adjustment, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
