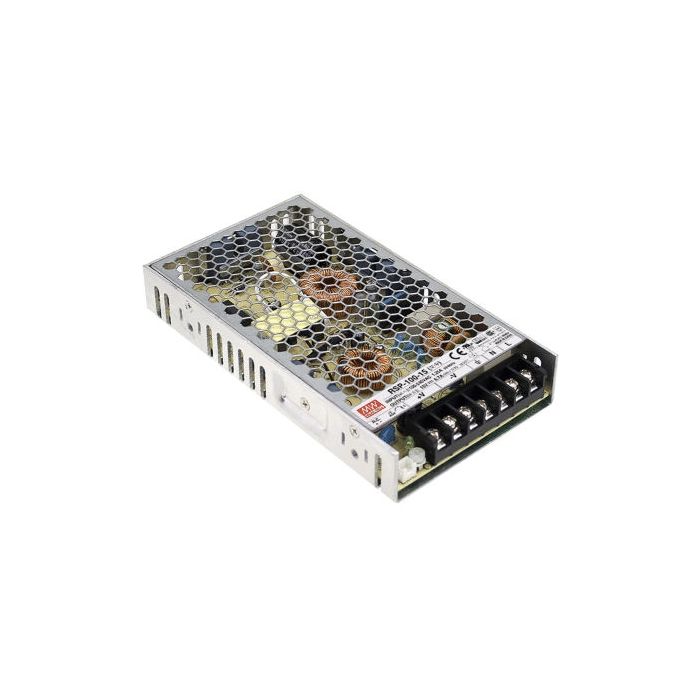

GESCHAKELDE VOEDING SINGLE OUTPUT 100W 24V/4.2A PFC
€ 52,50
€ 43,39
Artikelnummer
RSP10024
- ArtikelnummerRSP10024
- MerkMEANWELL
- Aantal 3+ € 49,88 € 41,22
Features
| • Enclosed case, screw terminals • Universal input • Overload protection, current limiting, auto recovery • Protections: short circuit/over load/over voltage • Built-in active PFC function • Low profile • Built-in remote On/Off control |
 |
| Technical Specifications |
|
|
| Input Voltage: | 85...264V AC (47...63Hz) |
| 120...370V DC | |
| Input Inrush Current, Max.: | 30A |
| Leakage Current, Max.: | 2mA |
| Output Voltage Adjustment: | -5/+10% |
| Over Load Protection: | 105...135% |
| Withstand Voltage | |
| I/P-O/P: | 3750V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -30...+70°C |
| Weight: | 520g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| RSP-100-3.3 | 3,3 | 0...20 | 66 | 2 | 100 | 83 |
| RSP-100-5 | 5 | 0...20 | 100 | 2 | 100 | 86 |
| RSP-100-7.5 | 7,5 | 0...13,5 | 101,25 | 2 | 100 | 87 |
| RSP-100-12 | 12 | 0...8,5 | 102 | 1 | 100 | 86 |
| RSP-100-13.5 | 13,5 | 0...7,5 | 101,25 | 1 | 100 | 86,5 |
| RSP-100-15 | 15 | 0...6,7 | 100,5 | 1 | 100 | 87 |
| RSP-100-24 | 24 | 0...4,2 | 100,8 | 1 | 150 | 87 |
| RSP-100-27 | 27 | 0...3,8 | 102,6 | 1 | 150 | 87 |
| RSP-100-48 | 48 | 0...2,1 | 100,8 | 1 | 250 | 88 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, Uadj = Output Voltage Adjustment, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
