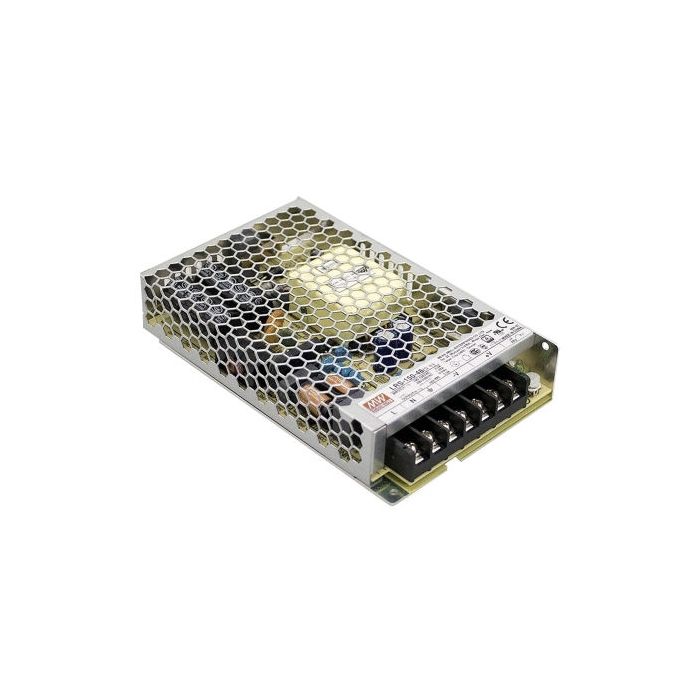

GESCHAKELDE VOEDING 156W 36V/4,3A
€ 29,95
€ 24,75
Artikelnummer
LRS15036
- ArtikelnummerLRS15036
- MerkMEANWELL
- Aantal 3+ € 28,45 € 23,51
Features
| • Enclosed case, screw terminals • LRS-150F: Universal input • LRS-150: 230V AC/115V AV by switch • Overload protection, pulsing hiccup shutdown, auto recovery • Protections: short circuit/over load/over voltage/ over temperature • Low profile • Safety standards: EN 62368-1 • EMC standards: EN 55032 Class B and more • 3 years manufacturer warranty |
 |
| Technical Specifications |
|
|
| Input Voltage | |
| LRS-150F: | 85...264V AC (47...63Hz) |
| 120...370V DC | |
| LRS-150: | 85...132V AC/170...264V AC (47...63Hz) |
| 240...370V DC | |
| Input Inrush Current, Max.: | 60A |
| Leakage Current, Max.: | 0,75mA |
| Output Voltage Adjustment: | ±10% |
| Over Load Protection: | 110...140% |
| Withstand Voltage | |
| I/P-O/P: | 3750V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 1250V AC |
| Operating Temperature: | -30...+70°C |
| Operating Altitude, Max.: | 5000m |
| Weight: | 480g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| LRS-150F-5 | 5 | 0...22 | 110 | 2 | 100 | 85 |
| LRS-150F-12 | 12 | 0...12,5 | 150 | 1 | 150 | 87,5 |
| LRS-150F-15 | 15 | 0...10 | 150 | 1 | 150 | 89 |
| LRS-150F-24 | 24 | 0...6,5 | 156 | 1 | 200 | 89 |
| LRS-150F-36 | 36 | 0...4,3 | 154,8 | 1 | 200 | 89 |
| LRS-150F-48 | 48 | 0...3,3 | 158,4 | 1 | 200 | 90 |
| LRS-150-12 | 12 | 0...12,5 | 150 | 1 | 150 | 87,5 |
| LRS-150-15 | 15 | 0...10 | 150 | 1 | 150 | 88,5 |
| LRS-150-24 | 24 | 0...6,5 | 156 | 1 | 200 | 89 |
| LRS-150-36 | 36 | 0...4,3 | 154,8 | 1 | 200 | 89 |
| LRS-150-48 | 48 | 0...3,3 | 158,4 | 1 | 200 | 90 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
