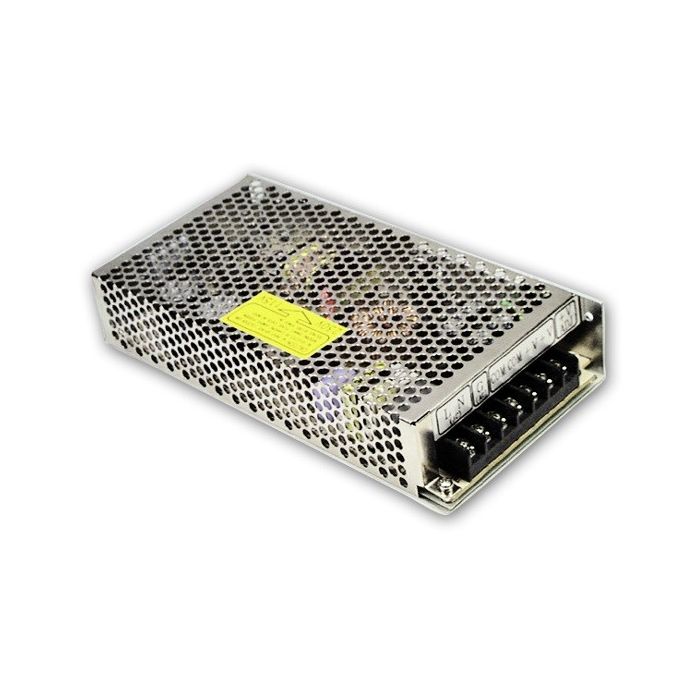

GESCHAKELDE VOEDING 133W DUAL OUTPUT +12/+48V 7.0/2.5A GEISOLEERD

Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105
Withstand 300VAC surge input for 5 second
High operating temperature up to 70
Withstand 5G vibration test
High efficiency, long life and high reliability

Uitgang
dc spanning : +24V/+48V
Stroom (max.) : 4.0A/2.5A
Vermogen : : 144W
Ripple & Noise (max.) : 80mVp-p/120mVp-p
Spanning uitgang 1 instelbaar : 45.6 ~ 52.8V

Ingang spanning : 88 ~ 264VAC 125 ~ 373VDC
Frequentie : 47 ~ 63Hz
