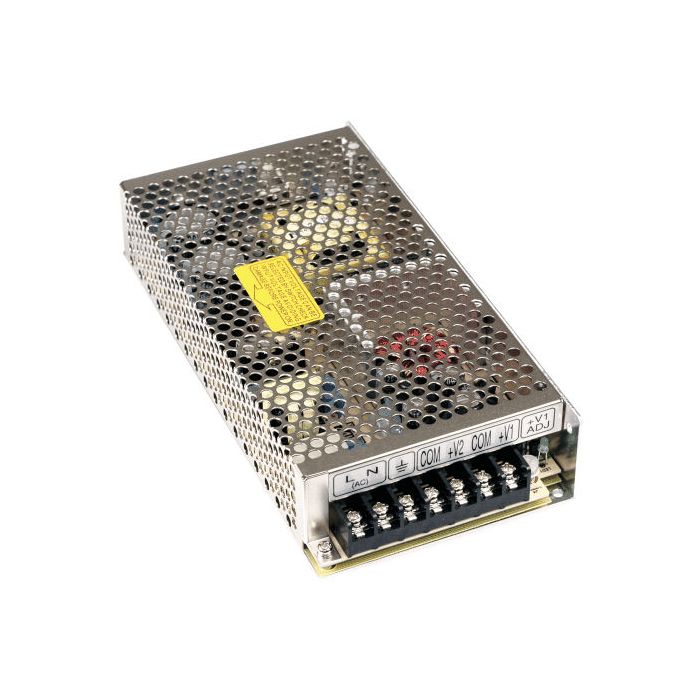

GESCHAKELDE VOEDING 133W DUAL OUTPUT +12/+24V 7.0/5.0A GEISOLEERD
€ 49,95
€ 41,28
Artikelnummer
RID1251224
- ArtikelnummerRID1251224
- MerkMEANWELL
- Aantal 3+ € 47,44 € 39,21
| Features |
| • Enclosed case, screw terminals • AC input range 115V/230V selectable by switch • Overload protection, pulsing hiccup shutdown, auto recovery • Protections: short circuit/over load/over voltage • Long life 105°C electrolytic capacitors • Isolated outputs |
 |
| Technical Specifications |
|
|
| Input Voltage: | 88...132/176...264V AC (47...63Hz) |
| 248...373V DC | |
| Input Inrush Current, Max.: | 40A |
| Leakage Current, Max.: | 2mA |
| Withstand Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -25...+70°C |
| Weight: | 700g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
| Part Nr. | UA | IA | PA1) | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| RID-125-1205 | 12 | 0...10,5 | 125,4 | 2 | 120 | 80 |
| 5 | 0...3 | 3 | 80 | |||
| RID-125-1224 | 12 | 0...7 | 133,2 | 2 | 120 | 85 |
| 24 | 0...5 | 8 | 200 | 85 | ||
| RID-125-1248 | 12 | 0...7 | 138 | 2 | 120 | 85 |
| 48 | 0...2,5 | 8 | 240 | 85 | ||
| RID-125-2405 | 24 | 0...5,3 | 125,4 | 2 | 120 | 83 |
| 5 | 0...3 | 3 | 80 | 83 | ||
| RID-125-2448 | 24 | 0...4 | 144 | 1 | 200 | 86 |
| 48 | 0...2,5 | 6 | 240 | 86 | ||
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency, 1) The Sum of the Power Used by the Individual Channels Must Not Exceed the Total Power Rating | ||||||
