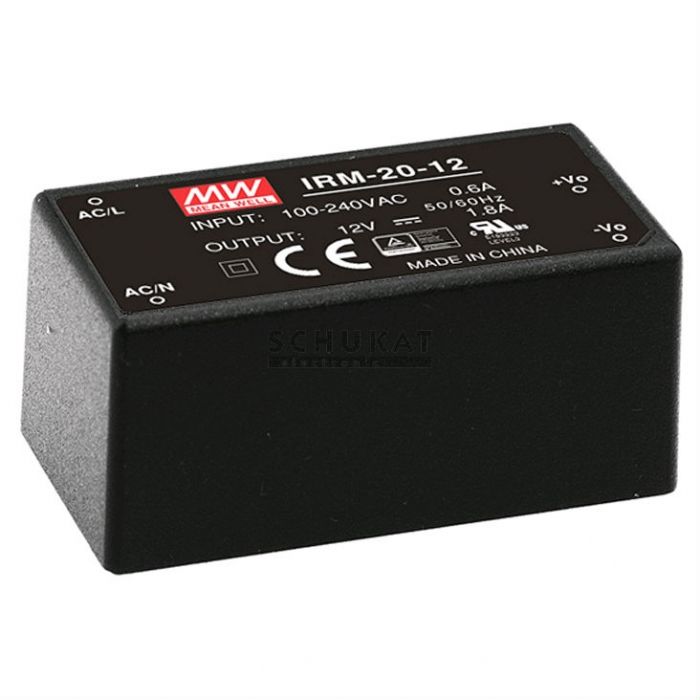

GESCHAKELDE VOEDING 12.0V 1.80A 20W PRINT MONTAGE
€ 16,50
€ 13,64
Artikelnummer
IRM2012
- ArtikelnummerIRM2012
- MerkMEANWELL
- Aantal 3+ € 15,67 € 12,95
Features
| • Enclosed type for PCB mounting • Universal input • Protections: short circuit/over load/over voltage • Cooling by free air convection • Low no load power consumption • Insulation class II |
 |
| Technical Specifications |
|
|
| Input Voltage: | 85...264V AC (47...440Hz) |
| 120...370V DC | |
| Input Inrush Current, Max.: | 40A |
| No Load Power Consumption, Max.: | 0,1W |
| Withstand Voltage: | 3000V AC |
| Operating Temperature: | -30...+70°C |
| Weight: | 50g |
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| IRM-20-3.3 | 3,3 | 0...4,5 | 14,85 | 2,5 | 200 | 76 |
| IRM-20-5 | 5 | 0...4 | 20 | 2,5 | 200 | 79 |
| IRM-20-12 | 12 | 0...1,8 | 21,6 | 2,5 | 200 | 84 |
| IRM-20-15 | 15 | 0...1,4 | 21 | 2,5 | 200 | 84 |
| IRM-20-24 | 24 | 0...0,9 | 21,6 | 2,5 | 200 | 85 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
|
||||||
| Norms |
| TÜV EN60950-1, UL60950-1 |
|
| Approvals |
  TÜV |
