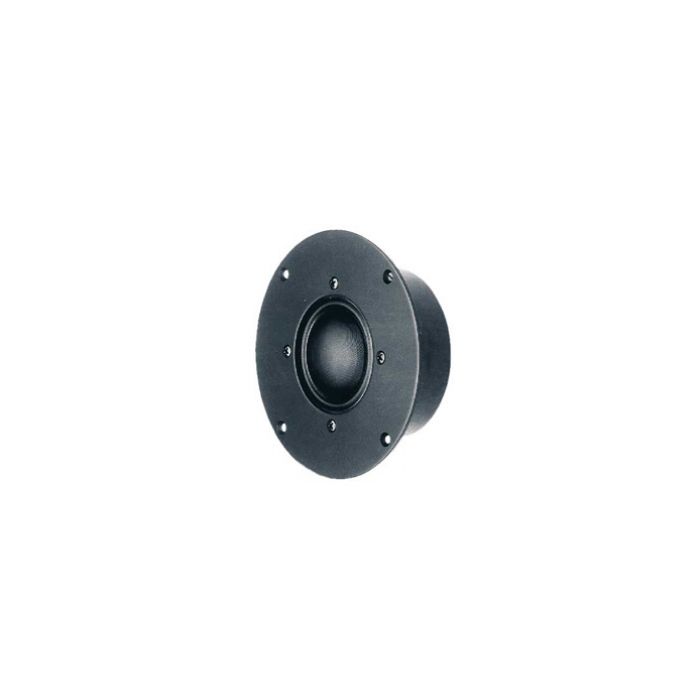

SPEAKER MID 8 OHM 120/180W 400-10000HZ 90DB 140MM

Nominal power handling with high pass 120 Watt (12 dB/Okt.; 800 Hz)
Peak power handling with high pass 180 Watt (12 dB/Okt.; 800 Hz)
Nominal impedance 8 Ohm
Frequency response 400 - 10000 Hz (-8 dB)
Mean sound pressure (nominal) 90 dB (1 W/1 m)
Resonance frequency 700 Hz
Magnetic induction 1,4 Tesla
Magnetic flux 880 µ Weber
Voice coil diameter 5 cm
Cutout diameter 106 mm
Net weight 1,26 kg
D.C. resistance Rdc 6 Ohm
Mechanical Q factor Qms 1
Electrical Q factor Qes 2,28
Total Q factor Qts 0,7
Effective piston area Sd 20 cm2
Dynamically moved mass mmd 1,2 g
Inductance of the voice coil 0,16 mH
