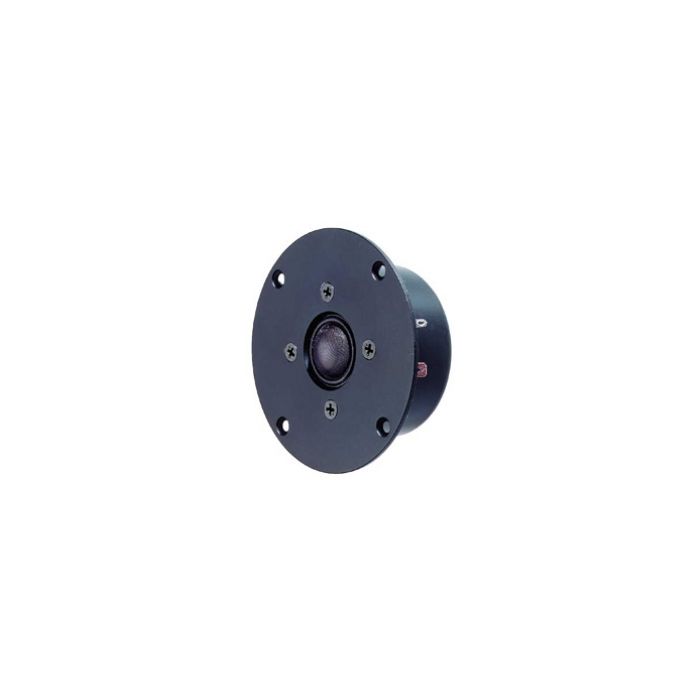

SPEAKER HOOG 8 OHM 80/140W 1200-30000HZ 88DB 94MM

Nominal power handling with high pass 80 Watt (12 dB/Okt.; 3000 Hz)
Peak power handling with high pass 140 Watt (12 dB/Okt.; 3000 Hz)
Nominal impedance 8 Ohm
Frequency response 1200 - 30000 Hz (-8 dB)
Mean sound pressure (nominal) 88 dB (1 W/1 m)
Resonance frequency 1800 Hz
Voice coil diameter 2 cm
Height of winding 0,2 cm
Cutout diameter 6,6 cm
Net weight 0,388 kg
D.C. resistance Rdc 5,1 Ohm
Mechanical Q factor Qms 1,04
Electrical Q factor Qes 3,12
Total Q factor Qts 0,78
Effective piston area Sd 3 cm2
Dynamically moved mass mmd 0,15 g
Inductance of the voice coil 0,04 mH
