SPEAKER BREEDBAND 4 OHM 30/50W 60-20000HZ 85DB 130MM
€ 29,95
€ 24,75
Artikelnummer
FX13
- ArtikelnummerFX13
- MerkVISATON
- Aantal 4+ € 28,45 € 23,51

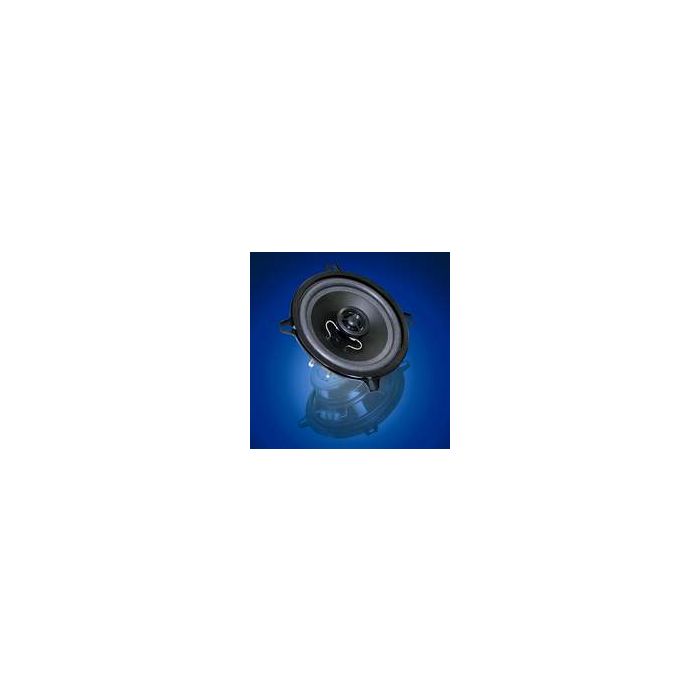

13 cm (5\") 2-way coaxial loudspeaker with standard basket. Integrated crossover (capacitor) for the tweeter. Straightforward installation in vehicles with cutouts for 13 cm speakers. Waterproof PP-cone.
Typical applicationsVehicles
Mobile homes
AttributesWaterproof cone
Metal basket
Coaxial speaker
Technical DataRated power 30 W
Maximum power 50 W
Nominal impedance Z 4 Ohm
Frequency response 6020000 Hz
Mean sound pressure level 85 dB (1 W/1 m)
Opening angle (-6 dB) 72°/4000 Hz
Excursion limit +/−2 mm
Resonance frequency fs 100 Hz
Magnetic induction 1,0 T
Magnetic flux 250 µWb
Height of front pole-plate 4 mm
Voice coil diameter 20 mm
Height of winding 6 mm
Cutout diameter 115 mm
Net weight 0,51 kg
Connections 4,8 x 0,8 mm (+)
2,8 x 0,8 mm (−)
Temperature range −25 ... 70 °C
