SPEAKER BREEDBAND 4 OHM 40/70W 70-22000HZ 84DB 100MM
€ 24,95
€ 20,62
Artikelnummer
FX10
- ArtikelnummerFX10
- MerkVISATON
- Aantal 4+ € 23,69 € 19,58

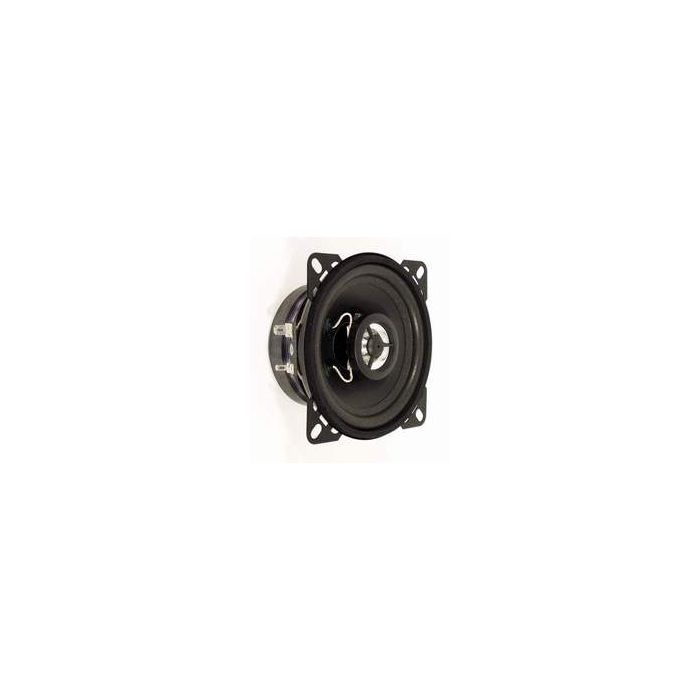

10 cm (4\") 2-way coaxial loudspeaker with standard basket. Integrated crossover (capacitor) for the tweeter. Straightforward installation in vehicles with cutouts for 10 cm speakers. Waterproof PP-cone.
Typical applicationsVehicles
Mobile homes
AttributesWaterproof cone
Metal basket
Coaxial speaker
Technical DataRated power 40 W
Maximum power 70 W
Nominal impedance Z 4 Ohm
Frequency response 7022000 Hz
Mean sound pressure level 84 dB (1 W/1 m)
Opening angle (-6 dB) 88°/4000 Hz
Excursion limit +/−2 mm
Resonance frequency fs 110 Hz
Height of front pole-plate 3 mm
Voice coil diameter 25 mm
Height of winding 6 mm
Cutout diameter 93 mm
Net weight 0,4 kg
Connections 4,8 x 0,8 mm (+)
2,8 x 0,8 mm (−)
Temperature range −25 ... 70 °
