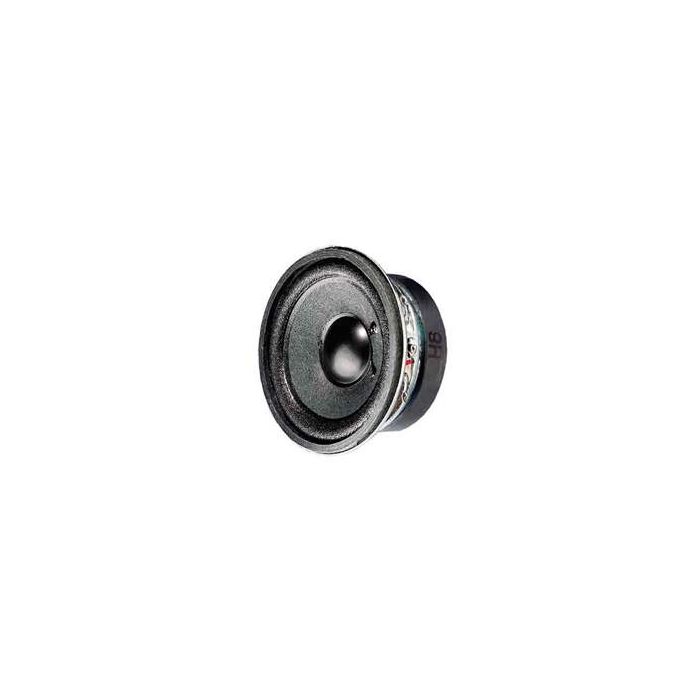

SPEAKER BREEDBAND 8OHM 4W/10W 150-20000HZ 84DB 50MM

Rated power 4 W
Maximum power 10 W
Nominal impedance Z 8 Ohm
Frequency response 150–20000 Hz
Mean sound pressure level 84 dB (1 W/1 m)
Opening angle (-6 dB) 180°/4000 Hz
Excursion limit +/−2 mm
Resonance frequency fs 250 Hz
Magnetic induction 0,75 T
Magnetic flux 65 µWb
Height of front pole-plate 2 mm
Voice coil diameter 14 mm
Height of winding 2,7 mm
Cutout diameter 45 mm
Net weight 0,098 kg
D.C. resistance Rdc 6,8 Ohm
Mechanical Q factor Qms 3,31
Electrical Q factor Qes 3,22
Total Q factor Qts 1,63
Equivalent volume Vas 0,1 l
Effective piston area Sd 12 cm²
Dynamically moved mass Mms 0,5 g
Force factor Bxl 1,4 Tm
Inductance of the voice coil L 0,1 mH
Temperature range −25 ... 70 °C
