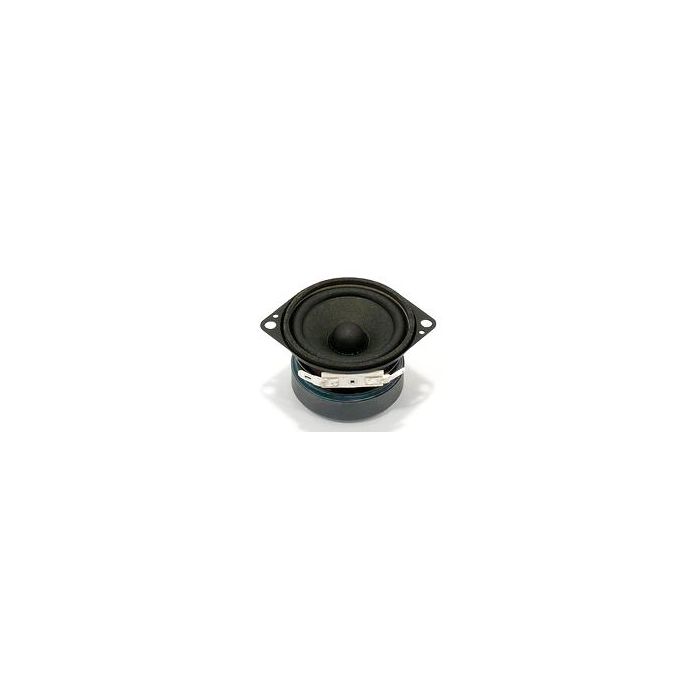

SPEAKER BREEDBAND 8OHM 5W/8W 120-20000HZ 86DB 52,5MM
€ 16,50
€ 13,64
Artikelnummer
FRS5XTS
- ArtikelnummerFRS5XTS
- MerkVISATON
- Aantal 3+ € 15,67 € 12,95
Rated power 5 W
Maximum power 8 W
Nominal impedance Z 8 Ohm
Frequency response 12020000 Hz
Mean sound pressure level 86 dB (1 W/1 m)
Opening angle (-6 dB) 180°/4000 Hz
Resonance frequency fs 190 Hz
Voice coil diameter 14 mm
Cutout diameter 46 mm
Net weight 0,14 kg
D.C. resistance Rdc 7,7 Ohm
Mechanical Q factor Qms 3,49
Electrical Q factor Qes 0,88
Total Q factor Qts 0,7
Equivalent volume Vas 0,23 l
Effective piston area Sd 12,5 cm²
Dynamically moved mass Mms 0,7 g
Force factor Bxl 2,67 Tm
Connections 4,8 x 0,8 mm (+)2,8 x 0,8 mm (−)
Temperature range −25 ... 70 °C
Maximum power 8 W
Nominal impedance Z 8 Ohm
Frequency response 12020000 Hz
Mean sound pressure level 86 dB (1 W/1 m)
Opening angle (-6 dB) 180°/4000 Hz
Resonance frequency fs 190 Hz
Voice coil diameter 14 mm
Cutout diameter 46 mm
Net weight 0,14 kg
D.C. resistance Rdc 7,7 Ohm
Mechanical Q factor Qms 3,49
Electrical Q factor Qes 0,88
Total Q factor Qts 0,7
Equivalent volume Vas 0,23 l
Effective piston area Sd 12,5 cm²
Dynamically moved mass Mms 0,7 g
Force factor Bxl 2,67 Tm
Connections 4,8 x 0,8 mm (+)2,8 x 0,8 mm (−)
Temperature range −25 ... 70 °C
