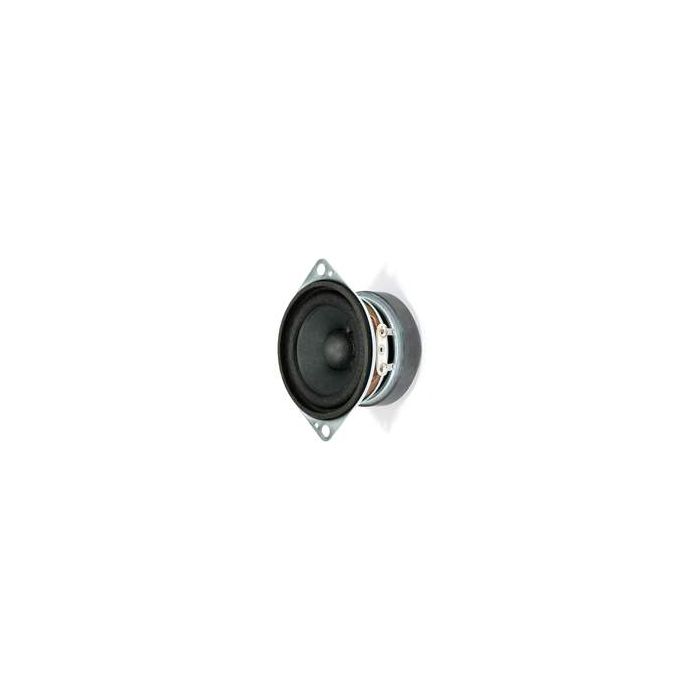

SPEAKER BREEDBAND 8OHM 5W/8W 150-20000HZ 84DB 52,5MM

cm (2\") full-range speaker with a special basket design featuring two fixing lugs. Suitable as a medium-range driver in speaker systems for HiFi and background music and for 100 V PA systems. Thanks to the slim construction, also suitable as a control speaker in electronic devices.

Typical applications:
- Very narrow network column speakers
- Control speaker for electronic devices
- Model construction
- Electronic musical instruments

Rated power 5 W
Maximum power 8 W
Nominal impedance Z 8 Ohm
Frequency response 150–20000 Hz
Mean sound pressure level 84 dB (1 W/1 m)
Opening angle (-6 dB) 180°/4000 Hz
Excursion limit +/−2 mm
Resonance frequency fs 270 Hz
Magnetic induction 0,95 T
Magnetic flux 105 µWb
Height of front pole-plate 2,5 mm
Voice coil diameter 14 mm
Height of winding 3,7 mm
Cutout diameter 46 mm
Net weight 0,126 kg
D.C. resistance Rdc 7,2 Ohm
Mechanical Q factor Qms 3,19
Electrical Q factor Qes 1,81
Total Q factor Qts 1,15
Equivalent volume Vas 0,2 l
Effective piston area Sd 12 cm²
Dynamically moved mass Mms 0,5 g
Force factor Bxl 1,6 Tm
Inductance of the voice coil L 0,2 mH
Temperature range −25 ... 70 °C
