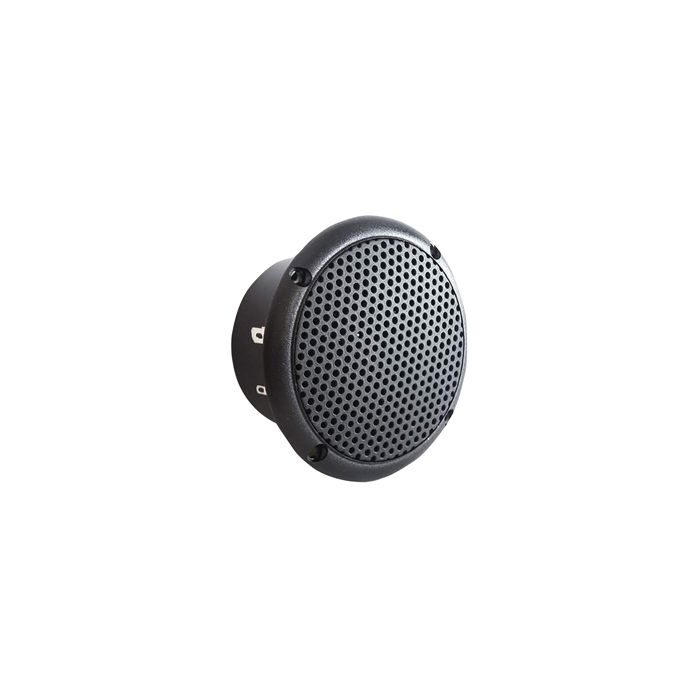

SPEAKER BREEDBD 8OHM 30W 80MM ZWART ZEEWATERBESTENDIG
€ 24,95
€ 20,62
Artikelnummer
FR8WP/8B
- ArtikelnummerFR8WP/8B
- MerkVISATON
- Aantal 5+ € 23,69 € 19,58
Technical Data:
Rated power 15 W
Maximum power 25 W
Nominal impedance Z 8 Ohm
Frequency response 10020000 Hz
Mean sound pressure level 84 dB (1 W/1 m)
Opening angle (-6 dB) 114°/4000 Hz
Excursion limit +/−3 mm
Resonance frequency fs 158 Hz
Magnetic induction 1 T
Magnetic flux 190 µWb
Height of front pole-plate 3 mm
Voice coil diameter 20 mm
Height of winding 4 mm
Cutout diameter 74 mm
Net weight 0,23 kg
Connections 5,2 x 0,5 mm (+)
2,8 x 0,5 mm (−)
Protective system IP 65 *)
Temperature range −40 ... 80 °C
Colour schwarz / black
Rated power 15 W
Maximum power 25 W
Nominal impedance Z 8 Ohm
Frequency response 10020000 Hz
Mean sound pressure level 84 dB (1 W/1 m)
Opening angle (-6 dB) 114°/4000 Hz
Excursion limit +/−3 mm
Resonance frequency fs 158 Hz
Magnetic induction 1 T
Magnetic flux 190 µWb
Height of front pole-plate 3 mm
Voice coil diameter 20 mm
Height of winding 4 mm
Cutout diameter 74 mm
Net weight 0,23 kg
Connections 5,2 x 0,5 mm (+)
2,8 x 0,5 mm (−)
Protective system IP 65 *)
Temperature range −40 ... 80 °C
Colour schwarz / black
