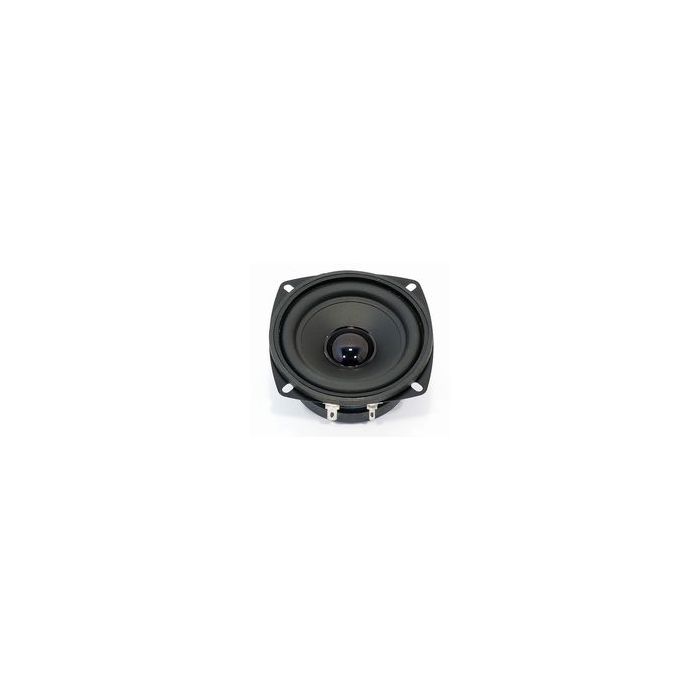

SPEAKER BREEDBAND 8 OHM 10/15W 80-20000HZ 86DB 60.5X60.5MM

Rated power 10 W
Maximum power 15 W
Nominal impedance Z 8 Ohm
Frequency response 80–20000 Hz
Mean sound pressure level 83 dB (1 W/1 m)
Opening angle (-6 dB) 180°/4000 Hz
Excursion limit +/−2 mm
Resonance frequency fs 130 Hz
Magnetic induction 1,4 T
Magnetic flux 200 µWb
Height of front pole-plate 3 mm
Voice coil diameter 15 mm
Height of winding 5 mm
Cutout diameter 75 mm
Net weight 0,24 kg
D.C. resistance Rdc 7,2 Ohm
Mechanical Q factor Qms 4,30
Electrical Q factor Qes 1,74
Total Q factor Qts 1,24
Equivalent volume Vas 0,84 l
Effective piston area Sd 30 cm²
Dynamically moved mass Mms 2,3 g
Force factor Bxl 2,77 Tm
Inductance of the voice coil L 0,6 mH
Temperature range −25 ... 70 °C
