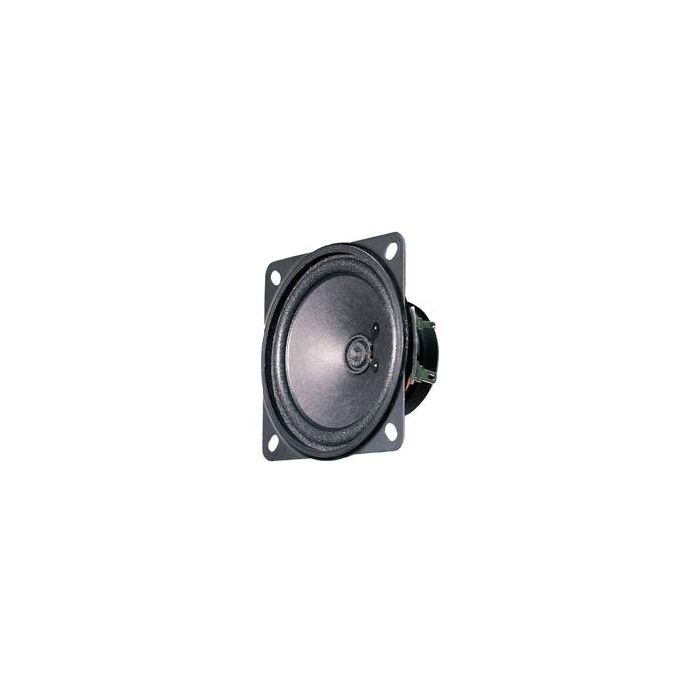

SPEAKER BREEDBAND 4 OHM 10/15W 100-20000HZ 85DB 84,5X84,5MM
€ 10,74
€ 8,88
Artikelnummer
FR87
- ArtikelnummerFR87
- MerkVISATON
- Aantal 3+ € 10,20 € 8,43
8.7 cm (3.4\") fullrange speaker with balanced frequency response and high efficiency. For speech and music reproduction in electronic divices and vehicles.
Typical applications:
- Control speaker for electronic devices
- Vehicles
- Electronic musical instruments
Attributes:
- Moisturised cone
- Metal basket
Technical Data:
Rated power 10 W
Maximum power 15 W
Nominal impedance Z 4 Ohm
Frequency response 10020000 Hz
Mean sound pressure level 85 dB (1 W/1 m)
Opening angle (-6 dB) 143°/4000 Hz
Excursion limit +/−2 mm
Resonance frequency fs 137 Hz
Height of front pole-plate 3 mm
Voice coil diameter 15 mm
Height of winding 4,3 mm
Cutout diameter 80 mm
Net weight 0,21 kg
D.C. resistance Rdc 3,5 Ohm
Mechanical Q factor Qms 6,4
Electrical Q factor Qes 1,56
Total Q factor Qts 1,25
Equivalent volume Vas 1,3 l
Effective piston area Sd 37 cm²
Dynamically moved mass Mms 2 g
Force factor Bxl 2,1 Tm
Inductance of the voice coil L 0,2 mH
Temperature range −25 ... 70 °C
