SPEAKER BREEDBAND 8 OHM 20/30W 95-22000HZ 86DB 100MM

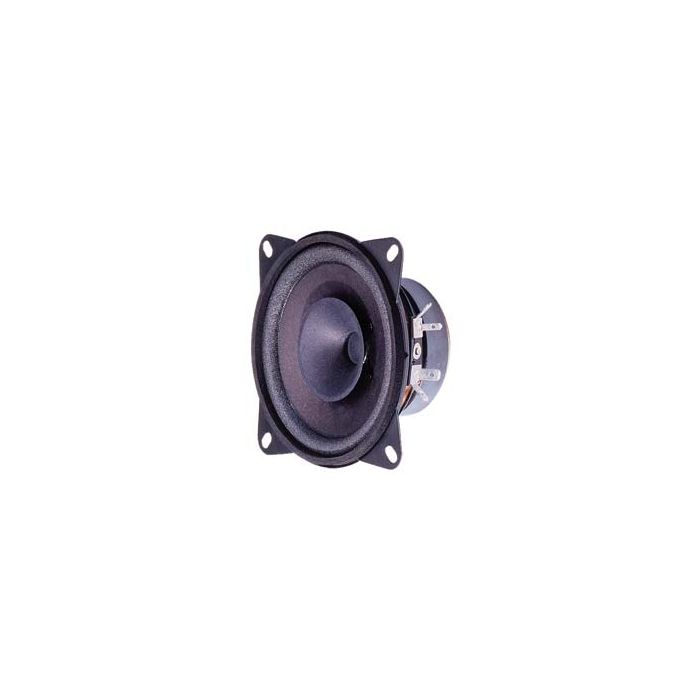

10 cm (4\") fullrange speaker with tweeter cone and European standard basket. Simple fitting in vehicles with cut-outs for 10 cm speakers.

Typical applications:
- Vehicles
- Mobile homes

Attributes:
- Moisturised cone
- Metal basket

Technical Data:
Rated power 20 W
Maximum power 30 W
Nominal impedance Z 8 Ohm
Frequency response 95–22000 Hz
Mean sound pressure level 86 dB (1 W/1 m)
Opening angle (-6 dB) 86°/4000 Hz
Excursion limit +/−2 mm
Resonance frequency fs 120 Hz
Magnetic induction 1,1 T
Magnetic flux 100 µWb
Height of front pole-plate 2 mm
Voice coil diameter 14 mm
Height of winding 5 mm
Cutout diameter 94 mm
Net weight 0,34 kg
D.C. resistance Rdc 7,2 Ohm
Mechanical Q factor Qms 5,89
Electrical Q factor Qes 1,91
Total Q factor Qts 1,44
Equivalent volume Vas 2 l
Effective piston area Sd 50 cm²
Dynamically moved mass Mms 2,8 g
Force factor Bxl 2,9 Tm
Inductance of the voice coil L 0,2 mH
Temperature range −25 ... 70 °C
