SPEAKER BREEDBAND 4 OHM 20/30W 100-22000HZ 86DB 101.5MM
€ 9,50
€ 7,85
Artikelnummer
FR10F
- ArtikelnummerFR10F
- MerkVISATON
- Aantal 3+ € 9,01 € 7,45

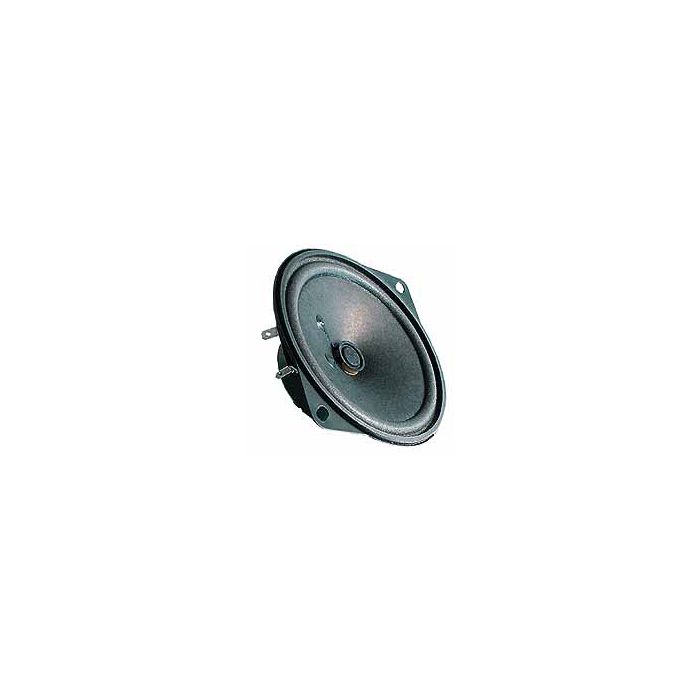

10 cm (4\") full-range loudspeaker with two fixing lugs and shallow design. High degree of sound pressure and good high-range reproduction. Easy to fit in vehicles with 10 cm loudspeaker mounts
Technical Data:
Rated power 20 W
Maximum power 30 W
Nominal impedance Z 4 Ohm
Frequency response 10022000 Hz
Mean sound pressure level 86 dB (1 W/1 m)
Opening angle (-6 dB) 122°/4000 Hz
Excursion limit +/−4 mm
Resonance frequency fs 133 Hz
Height of front pole-plate 3 mm
Voice coil diameter 14 mm
Cutout diameter 94 mm
Net weight 0,2 kg
D.C. resistance Rdc 3,7 Ohm
Mechanical Q factor Qms 6,5
Electrical Q factor Qes 1,99
Total Q factor Qts 1,52
Equivalent volume Vas 2,2 l
Effective piston area Sd 52 cm²
Dynamically moved mass Mms 2,4 g
Force factor Bxl 1,7 Tm
Inductance of the voice coil L 0,35 mH
Temperature range −25 ... 70 °C
