RS232 4 POORT 4X9P PCIE
€ 42,75
€ 35,33
Artikelnummer
FM324
- ArtikelnummerFM324
- MerkBrand
- Aantal 2+ € 41,03 € 33,91

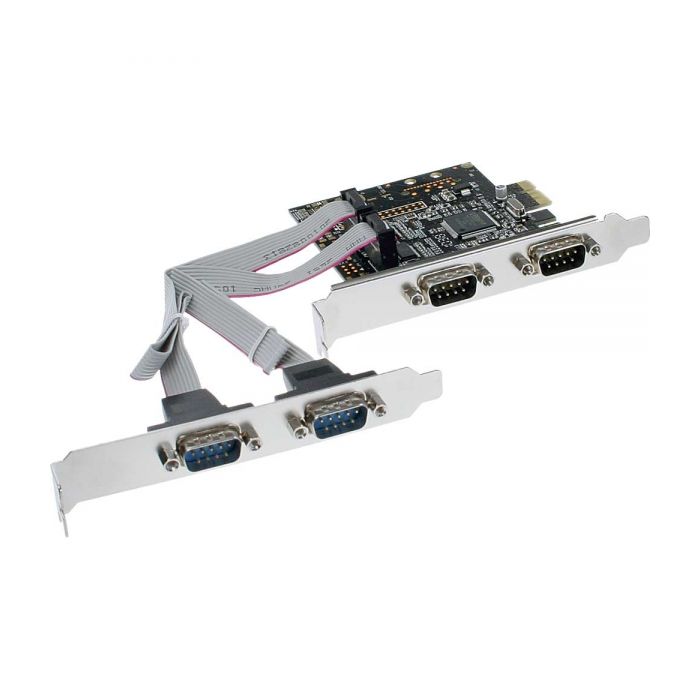

Interface card, InLine®, 4x serial 9-pin, PCIe (PCI-Express)
Fully compliant with PCI-Express Base Specification Revision 1.1
Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
Supports Re-map function for legacy ports
Supports Windows 2000, XP 32/64-bit, Server 2003
32/64-bit, Vista 32/64-bit, Server 2008 32/64-bit, Windows 7 32/64-bit,Windows 8 32/64 Bit, Linux, Mac OS/X 10..5, and DOS 6.22
4-ports serial (RS-232) Interface
Compatible with industrial standard 16C450/16C550 UART
On chip 256-byte depth FIFO in transmit, receive path of each port
Maximum data rate 230.4Kbps on each port (Special version can support up to 1Mbps)
Supports hardware and software flow control
Supports 5-, 6-, 7-, 8- bit serial format
Supports Even, Odd, None, Space & Mark parity
Supports 1 or 2 Stop bit operation
Moschip MCS9904CV-AA
Fully compliant with PCI-Express Base Specification Revision 1.1
Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
Supports Re-map function for legacy ports
Supports Windows 2000, XP 32/64-bit, Server 2003
32/64-bit, Vista 32/64-bit, Server 2008 32/64-bit, Windows 7 32/64-bit,Windows 8 32/64 Bit, Linux, Mac OS/X 10..5, and DOS 6.22
4-ports serial (RS-232) Interface
Compatible with industrial standard 16C450/16C550 UART
On chip 256-byte depth FIFO in transmit, receive path of each port
Maximum data rate 230.4Kbps on each port (Special version can support up to 1Mbps)
Supports hardware and software flow control
Supports 5-, 6-, 7-, 8- bit serial format
Supports Even, Odd, None, Space & Mark parity
Supports 1 or 2 Stop bit operation
Moschip MCS9904CV-AA
