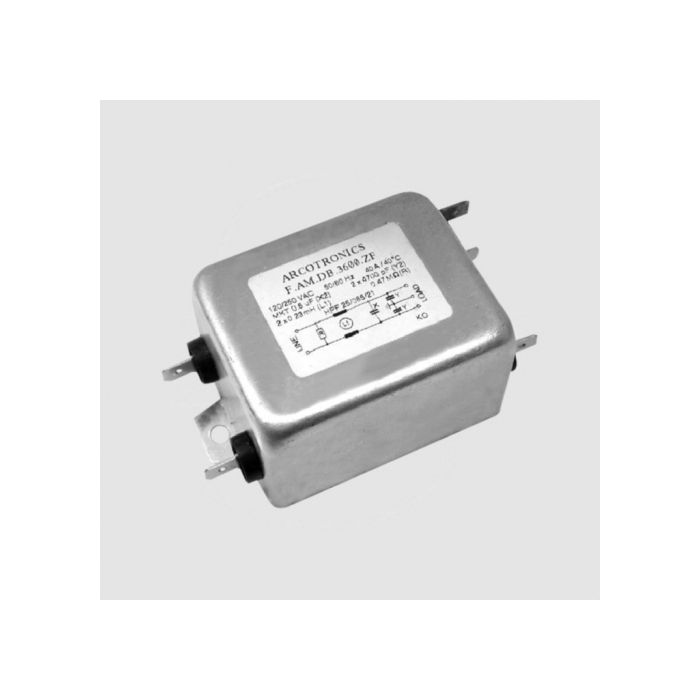

NETFILTER 230V 40A MET 6,3MM FASTON AANSLUITING
€ 47,95
€ 39,63
Artikelnummer
FL3640
- ArtikelnummerFL3640
- MerkKEMET
- Aantal 5+ € 43,15 € 35,66
Features
Compact design
Universal application
Quality metal housing
Faston plug terminal 6,3x0,8mm
Technical Specifications
Rated Voltage: 250V, 50/60Hz
Voltage Test, 2s: Line to Ground 3kV DC or 1,8kV AC
Line to Line 1,7kV DC
Temperature Range: -25...+85°C
Climatic Category: HPF (25/085/21)
IR (A) 40A
L1 (mH) 2 x 0.23mH
CX2 (uF) 1 x 0,6uF
CY (nF) 2 x 4700nF
IL (mA) 2 x 0,43mA
R (Mohm) 0,47M ohm
Compact design
Universal application
Quality metal housing
Faston plug terminal 6,3x0,8mm
Technical Specifications
Rated Voltage: 250V, 50/60Hz
Voltage Test, 2s: Line to Ground 3kV DC or 1,8kV AC
Line to Line 1,7kV DC
Temperature Range: -25...+85°C
Climatic Category: HPF (25/085/21)
IR (A) 40A
L1 (mH) 2 x 0.23mH
CX2 (uF) 1 x 0,6uF
CY (nF) 2 x 4700nF
IL (mA) 2 x 0,43mA
R (Mohm) 0,47M ohm
