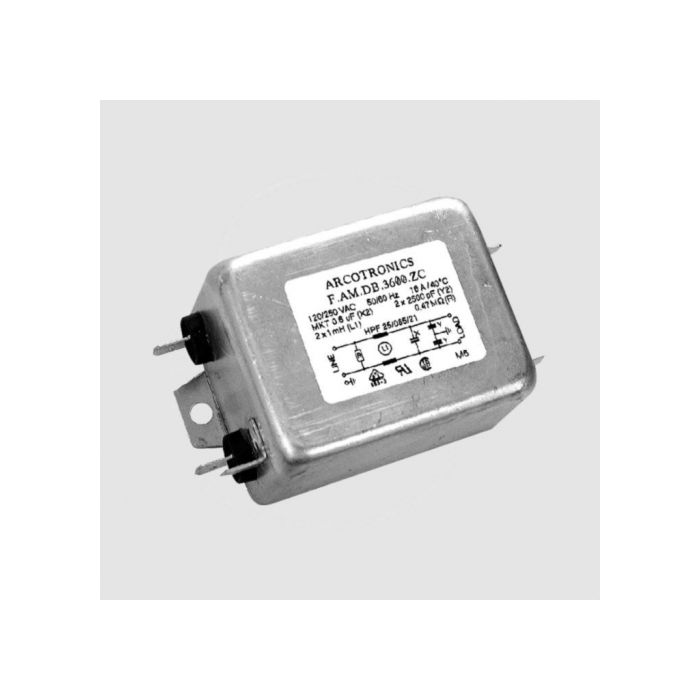

NETFILTER 230V 16A MET 6,3MM FASTON AANSLUITING
€ 38,50
€ 31,82
Artikelnummer
FL3600
- ArtikelnummerFL3600
- MerkKEMET
- Aantal 5+ € 34,64 € 28,63
Features
Compact design
Universal application
Quality metal housing
Faston plug terminal 6,3x0,8mm
Technical Specifications
Rated Voltage: 250V, 50/60Hz
Voltage Test, 2s: Line to Ground 3kV DC or 1,8kV AC
Line to Line 1,7kV DC
Temperature Range: -25...+85°C
Climatic Category: HPF (25/085/21)
IR (A) 16A
L1 (mH) 2 x 1mH
CX2 (uF) 1 x 0,6uF
CY (nF) 2 x 2500nF
IL (mA) 2 x 0,23mA
R (Mohm) 0,47M ohm
Compact design
Universal application
Quality metal housing
Faston plug terminal 6,3x0,8mm
Technical Specifications
Rated Voltage: 250V, 50/60Hz
Voltage Test, 2s: Line to Ground 3kV DC or 1,8kV AC
Line to Line 1,7kV DC
Temperature Range: -25...+85°C
Climatic Category: HPF (25/085/21)
IR (A) 16A
L1 (mH) 2 x 1mH
CX2 (uF) 1 x 0,6uF
CY (nF) 2 x 2500nF
IL (mA) 2 x 0,23mA
R (Mohm) 0,47M ohm
