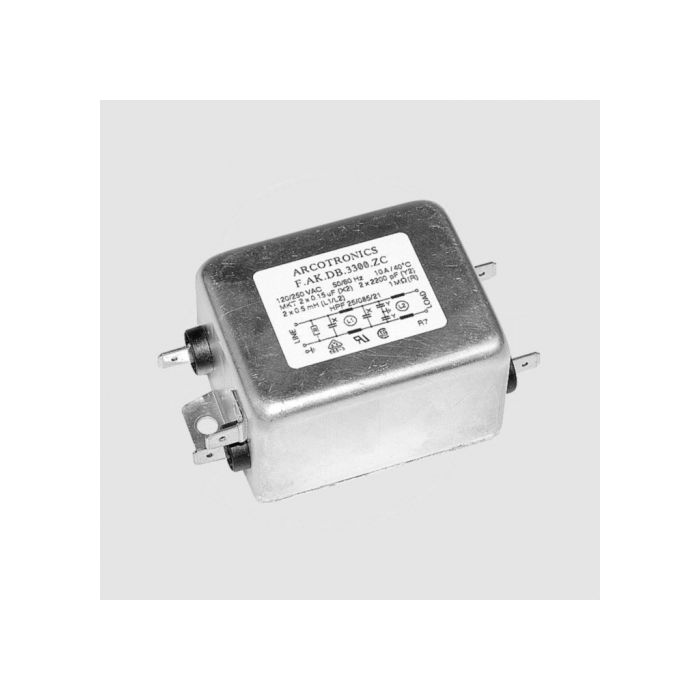

NETFILTER 230V 10A MET 2,8MM FASTON AANSLUITING
€ 33,50
€ 27,69
Artikelnummer
FL3300ZC
- ArtikelnummerFL3300ZC
- MerkKEMET
- Aantal 5+ € 30,15 € 24,92
Features
Compact design
Universal application
Quality metal housing
Faston plug terminal 6,3x0,8mm
Technical Specifications
Rated Voltage: 250V, 50/60Hz
Voltage Test, 2s: Line to Ground 3kV DC or 1,8kV AC
Line to Line 1,7kV DC
Temperature Range: -25...+85°C
Climatic Category: HPF (25/085/21)
IR (A) 10A
L1 (mH) 2 x 0.5mH
L2 (mH) 2 x 0.5mH
CX1 (uF) 1 x 0,015uF
CX2 (uF) 1 x 0,015uF
CY (nF) 2 x 2200nF
IL (mA) 2 x 0,2mA
R (Mohm) 1M ohm
Compact design
Universal application
Quality metal housing
Faston plug terminal 6,3x0,8mm
Technical Specifications
Rated Voltage: 250V, 50/60Hz
Voltage Test, 2s: Line to Ground 3kV DC or 1,8kV AC
Line to Line 1,7kV DC
Temperature Range: -25...+85°C
Climatic Category: HPF (25/085/21)
IR (A) 10A
L1 (mH) 2 x 0.5mH
L2 (mH) 2 x 0.5mH
CX1 (uF) 1 x 0,015uF
CX2 (uF) 1 x 0,015uF
CY (nF) 2 x 2200nF
IL (mA) 2 x 0,2mA
R (Mohm) 1M ohm
