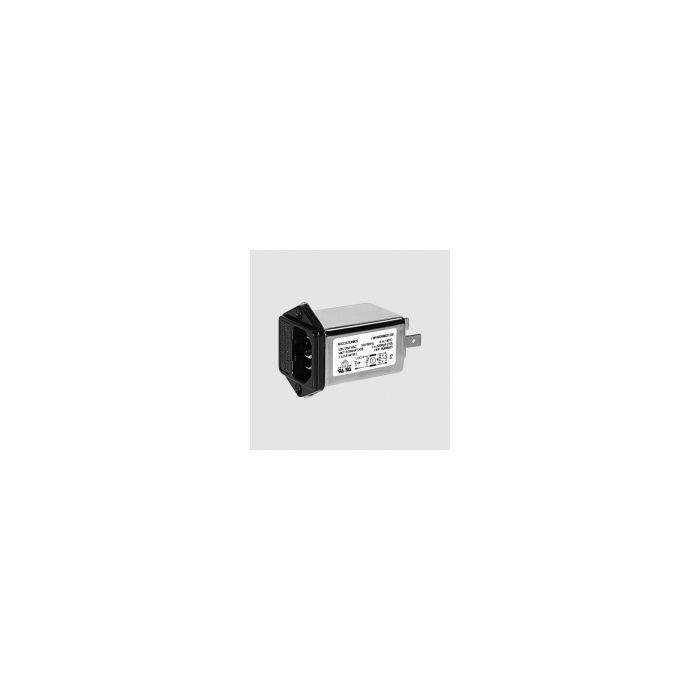

NETFILTER 6A 250V CHASSISDEEL MET ZEKERING SCHROEFMONTAGE

Features

• Filter built in a metal housing with integrated power line connector and fuse holder
• Fuse holder for 5x20mm fuse
• Faston plug terminal 6,3x0,8mm
• FIL2680BP: Screw mounting
• FIL2680CP: Snap-in mounting


Technical Specifications

Rated Voltage: 250V, 50/60Hz
Voltage Test, 2s: Line to Ground 3kV DC or 1,8kV AC
Line to Line 1,7kV DC
Temperature Range: -25...+85°C
Climatic Category: HPF (25/085/21)

IR = 6A
L = 2x0,8mH
CX = 0,068ìF
CY = 2x2200pF
IL = 2x0,2mA

IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 220V, 50Hz
