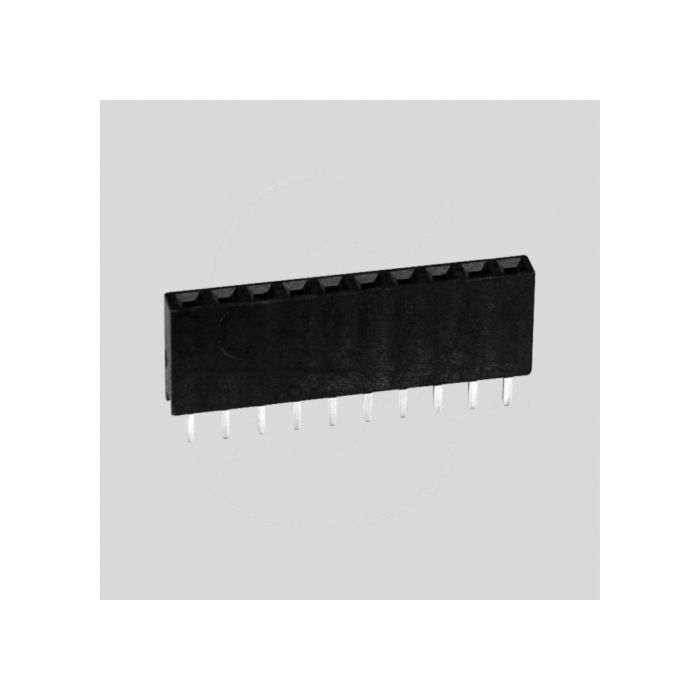

HEADER 10P FEMALE SINGLE IN LINE HOOG RASTER 2.54MM

Features
• Tin-plated and gold-plated design
• Suitable for square pins 0,64x0,64mm

Technical Specifications
Insulation Shell: Thermoplastic (UL94V-0)
Contact Material: Phosphor-Bronze

Contact Shell
BL1_Z: Tinned
BL1_TG: Gold-plated
Insulation Resistance: £40mW
Rated Current: 3A
Rated Voltage: 250VRMS/250V DC
Dielectric Strength (1Min.): 500V AC
Temperature Range: -40...+105°C
Short Term (Max. 10s): 260°C
Solderability: IEC 68-2-20 Tb
