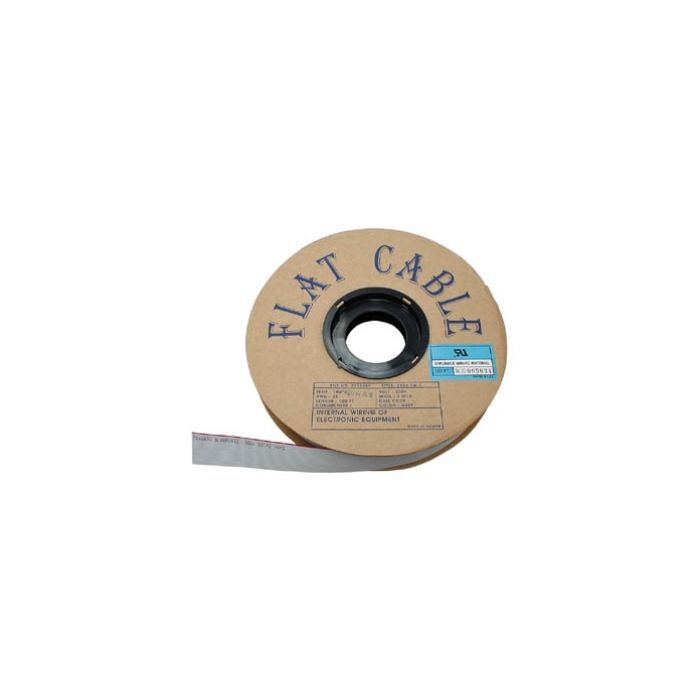

FLATKABEL 60 ADERIG LITZE GRIJS AWG28 1,27MM
€ 5,35
€ 4,42
Artikelnummer
FK060
- ArtikelnummerFK060
- MerkBrand
- Aantal 10+ € 4,80 € 3,97
Extruding strip cable, solid tinned copper wire AWG28 (0,09mm2), pitch: 1,27mm, grey, special PVC insulation (Similar Y18 according to VDE0207) with blue polarity marking. Flame retardant according to VDE 0472 and UL
Technical Specifications
Temperature Range: -20...+105°C
Rated Voltage: 300V
Rated Current: 1A
Test Voltage: 2000V
Insulation Resistance: >20MW*km
Capacitance (@1MHz): 45pF/m
Inductance (@1MHz): 0,46µH/m
Impedance: 104W
Crosstalk, Near (@1MHz): 60dB
Crosstalk, Far (@1MHz): 50dB
