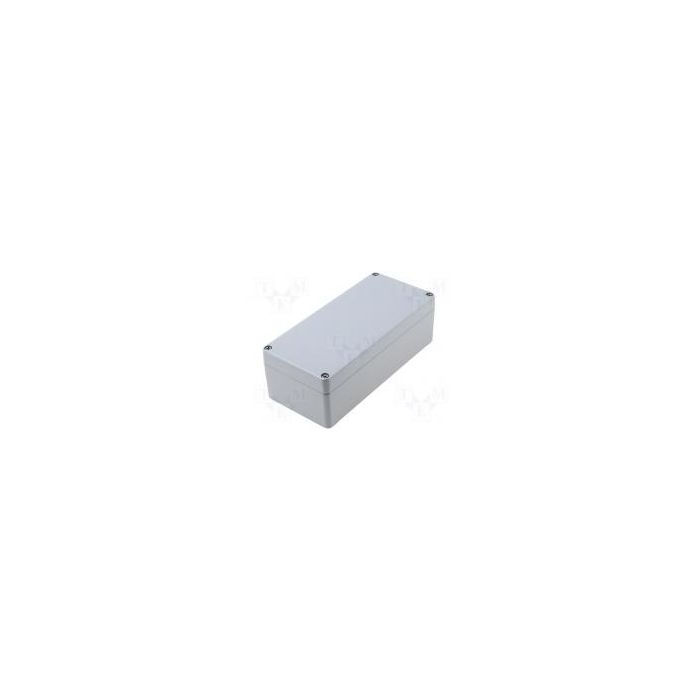

GIETALUMINIUM 175X80X57MM IP66

Features
• Dust proof, jet water-protected aluminum die-cast metal enclosure
• With integrated sealed cover and stainless steel countersunk screws
• Recommended for all regular clamping types and also as clamping enclosures due to the assembly of cams in the lower surface of the enclosure.
• Offset assembly cams make the attachment of plates without pre-drilling possible.
• Cams with lateral mounting rails contribute to a secure levitation rail attachment.
• Cams are additionally attached to the inner surface of the cover.
• All assembly cams are appropriate for machine screws.
• Also suitable for wall assembly


Application
• To protect electronics in tough environments
• For external use
• Everywhere, where high temperatures occur
• Industrial sectors, e.g. car wash


Technical Specifications
Enclosure Material: GD Al Si 12
Sealing: Neoprene or Polyurethane-Foamed
90°C Heat and Chemical Resistant
Protection Class: IP66

A 175 mm
B 80 mm
C 57 mm
a1 165,5 mm
a2 150,4 mm
b1 70,5 mm
b2 47,4 mm
c1 15 mm
c2 51 mm
