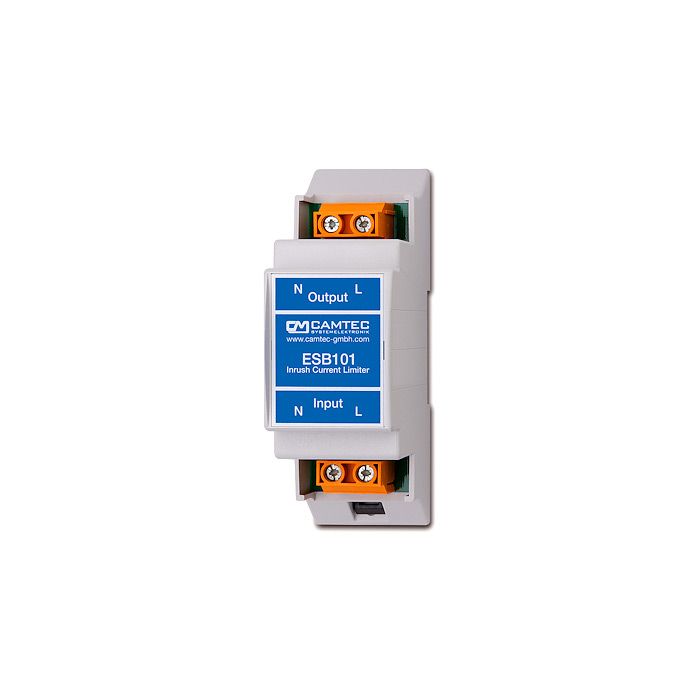

INSCHAKELSTROOMBEGRENZER 230VAC 23A PEAK 500MS

Model ESB101.23S
Limiting Peak current 23A for Ton=500ms
Limiting RMS-value 16,3A for Ton=500ms
Limiting Cycle Interval 1400ms (3x/minute)
Low Voltage Detection Toff=800ms
Input Voltage 184... 265Vac 16 1/3... 440Hz 1PH
Nominal voltage 220... 240Vac
AC Continuous Current 16A
Load capacity 2000uF
Connectors Spring-type-terminal 0,5... 6mm²
Ambient Opearting Temperature -40°C... +0°C no derating
Cooling Natural convection
Dimensions (WxHxD) 36,5 x 62 x 110mm
Special Features Temperature protected (fuse)
Fire protected
Accuracy ±5%, independent from ambient temperature
Capable of inductive and capacitive loads (no restrictions)
Bypass circuit
4000m / 13123 ft. Above sea level
