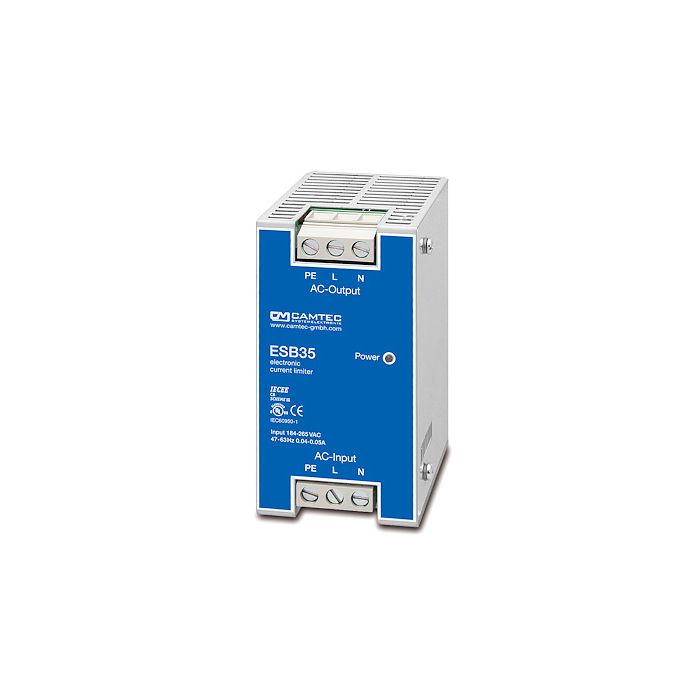

INSCHAKELSTROOMBEGRENZER 230VAC 35A PEAK 300MS

Model ESB00351
Limiting Peak current 35A for Ton=150ms
Limiting RMS-value 24,8A for Ton=150ms
Limiting Cycle Interval 60s
Low Voltage Detection Toff=100ms
Input Voltage 184... 265Vac 47... 63Hz
Nominal voltage 220... 240Vac
AC Continuous Current 30A
Load capacity 10000uF
Connectors Spring-type-terminal 0,5... 10mm²
Ambient Opearting Temperature -20°C... +70°C no derating
Cooling Natural convection
Dimensions (WxHxD) 195 x 130 x 122mm
