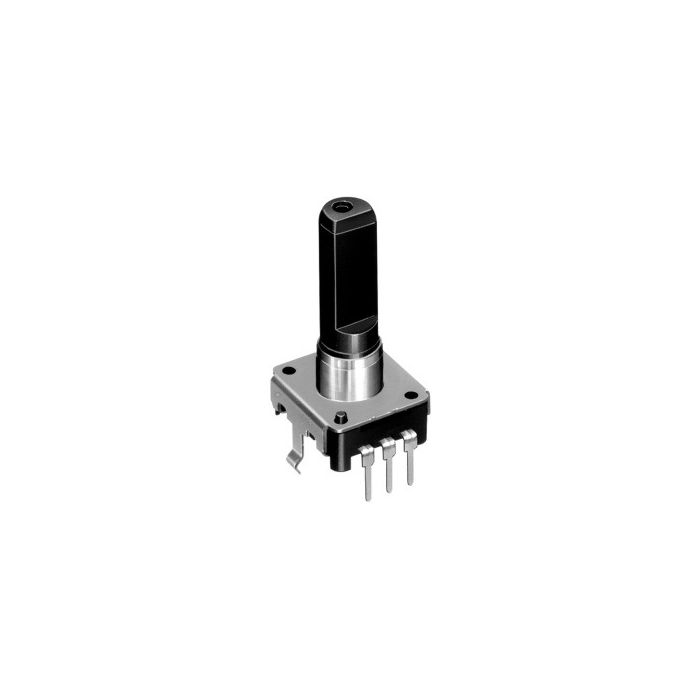

ENCODER EC12 24 PULS
€ 1,82
€ 1,50
Artikelnummer
12E24204A9
- Artikelnummer12E24204A9
- MerkALPS
- Aantal 3+ € 1,63 € 1,35
| Features |
| • Compact design • Number of pulse: 12,15 or 24 • Mechanical angles 360° • Optionally with push-on switch |
 |
| Technical Specifications |
|
|
| Rating Voltage: | 5V DC |
| Input Current | |
| EC12E: | 0,5mA |
| EC12D: | 1mA |
| Insulation Resistance (Min.) | |
| EC12E: | 10MOhm / 50V DC |
| EC12D: | 100MOhm / 250V DC |
| Dielectric Strength (1Min) | |
| EC12E: | 50V AC |
| EC12D: | 300V AC |
| Operating Torque | |
| EC12E_: | 3±2Nm*m |
| EC12D_: | 10±3Nm*m |
| Rotation Angle: | 360° |
| Lifetime: | 30x103 Operations |
| Switch Specifications | |
| Contact | SPST-NO |
| EC12D_: | 1mA / 5V DC |
| Temperature Range | |
| EC12E: | -10°C...+70°C |
| EC12D: | -40°C...+85°C |
|
|
| Selection Table |
| Part Nr. | Design | Number | Number | Travel |
| of Detent | of Pulse | of Switch | ||
| [mm] | ||||
| EC12E1220405 | plain collar | 12 | 12 | - |
| EC12E24204A9 | plain collar | 24 | 24 | - |
| EC12E2420801 | with bushing | 24 | 24 | - |
| EC12D1564402 | push-on switch | 30 | 15 | 0,5 |
