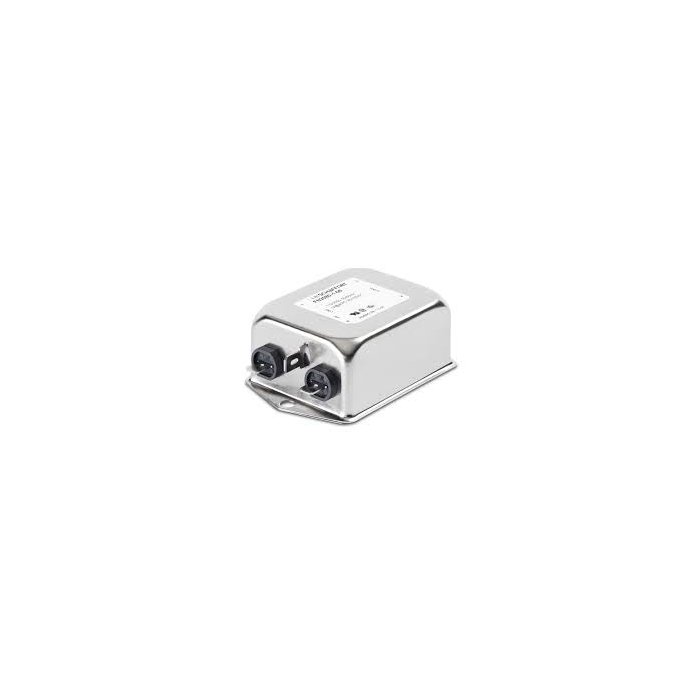

EMI NETFILTER 1 FASE 2 TRAPS 250V 6A MET 6,3MM FASTON AANSLUITING
€ 32,95
€ 27,23
Artikelnummer
FN2060-6
- ArtikelnummerFN2060-6
- MerkSCHAFFNER
- Aantal 5+ € 29,65 € 24,50
Features
| • Single phase filters, two-stage, built in a metal housing • Faston plug terminal 6,3x0,8mm • Compact design • Universal application |
 |
| Technical Specifications |
|
|
| Continuous Operating Voltage, Max.: | 250V AC, 50/60Hz |
| Dielectric Strength, 2s | |
| Line To Ground: | 2kV AC |
| Line To Line: | 1,1kV DC |
| Temperature Range: | -25...+100°C |
|
|
| Part Nr. | IR | L | CX | CY | IL |
| [A] | [mH] | [µF] | [nF] | [mA] | |
| FN2060-3-06 | 3 | 2,5 | 0,22 | 4,7 | 0,734 |
| FN2060-6-06 | 6 | 0,97 | 0,22 | 4,7 | 0,734 |
| FN2060-10-06 | 10 | 0,8 | 0,47 | 4,7 | 0,734 |
| FN2060-16-06 | 16 | 0,65 | 0,33 | 4,7 | 0,734 |
| IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 230V AC, 50Hz | |||||
|
|||||
