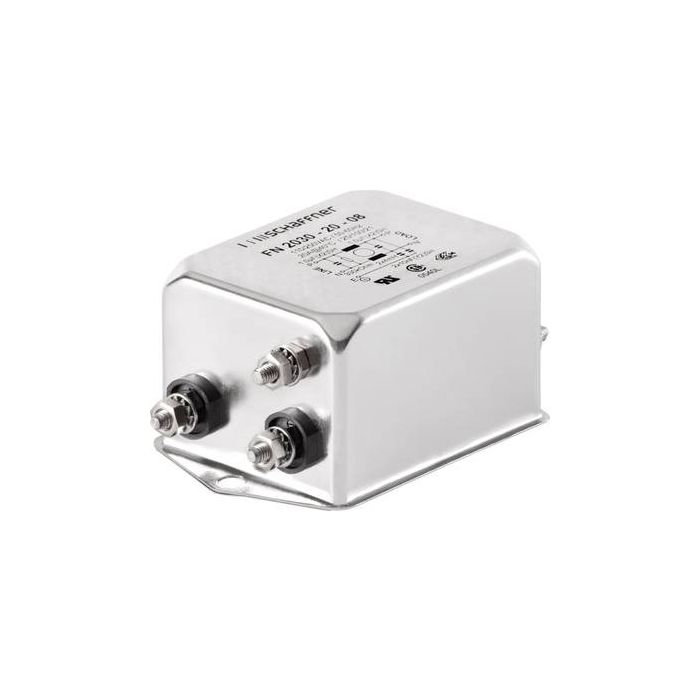

EMI NETFILTER 1 FASE 2 TRAPS 250V 30A MET M4 AANSLUITING
€ 106,07
€ 87,66
Artikelnummer
FN2090-30M
- ArtikelnummerFN2090-30M
- MerkSCHAFFNER
- Aantal 5+ € 95,46 € 78,89
Features
| • Single phase filters, two-stage, built in a metal housing • Compact design • Universal application • FN2090F Faston plug terminal 6,3x0,8mm • FN2090M: Studs (M4 screws) |
 |
| Technical Specifications |
|
|
| Continuous Operating Voltage, Max.: | 250V AC, 50/60Hz; 250V DC |
| Dielectric Strength, 2s | |
| Line To Ground: | 2kV AC |
| Line To Ground: | 2,55kV DC |
| Line To Ground B-Type: | 2,5kV AC |
| Line To Neutral: | 1,1kV DC |
| Temperature Range: | -25...+100°C |
|
|
| Part Nr. | IR | L | CX | CY1 | CY2 | IL |
| [A] | [mH] | [µF] | [nF] | [nF] | [mA] | |
| FN2090-1F | 1 | 20 | 0,22 | 2,2 | 1,0 | 0,45 |
| FN2090-3F | 3 | 14 | 0,33 | 2,2 | 1,0 | 0,45 |
| FN2090-4F | 4 | 14 | 0,33 | 2,2 | 1,0 | 0,45 |
| FN2090-6F | 6 | 8 | 0,47 | 3,3 | 1,0 | 0,61 |
| FN2090-8F | 8 | 8 | 0,47 | 3,3 | 1,0 | 0,61 |
| FN2090-10F | 10 | 8 | 0,47 | 3,3 | 1,0 | 0,61 |
| FN2090-12F | 12 | 4 | 1 | 10 | 1,0 | 0,93 |
| FN2090-16F | 16 | 4 | 1 | 10 | 1,0 | 0,93 |
| FN2090-20F | 20 | 2,7 | 1 | 10 | 1,0 | 0,93 |
| FN2090-20M | 20 | 2,7 | 1 | 10 | 1,0 | 0,93 |
| FN2090-30M | 30 | 1,5 | 1 | 10 | 1,0 | 0,93 |
| IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 250V AC, 50Hz | ||||||
