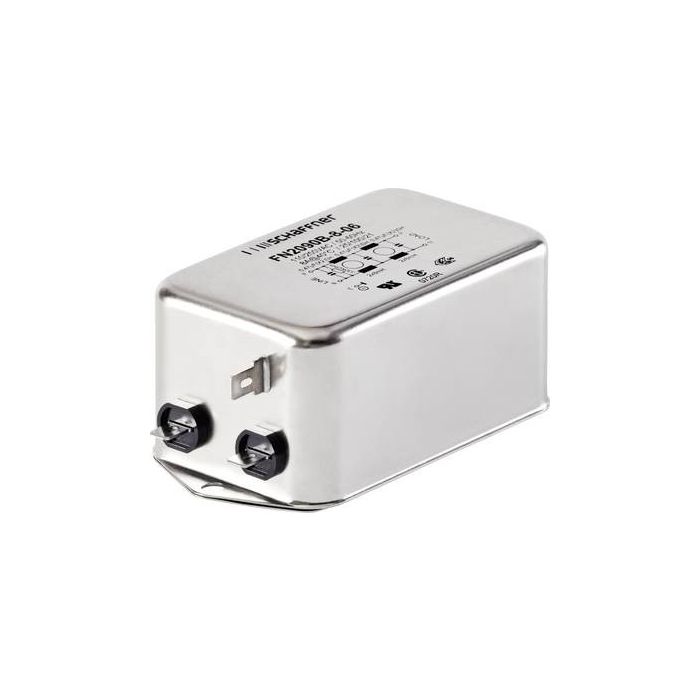

EMI NETFILTER 1 FASE 2 TRAPS 250V 1A MET 6,3MM FASTON AANSLUITING
€ 41,95
€ 34,67
Artikelnummer
FN2080-1F
- ArtikelnummerFN2080-1F
- MerkSCHAFFNER
- Aantal 5+ € 37,75 € 31,20
Features
| • Single phase filters, two-stage, built in a metal housing • Faston plug terminal 6,3x0,8mm • Compact design • Universal application • |
 |
| Technical Specifications |
|
|
| Continuous Operating Voltage, Max.: | 250V AC, 50/60Hz; 250V DC |
| Dielectric Strength, 2s | |
| Line To Ground: | 2kV AC |
| Line To Ground B-Types: | 2,5kV AC |
| Line To Neutral: | 1,1kV DC |
| Temperature Range: | -25...+100°C |
|
|
| Part Nr. | IR | L | L1 | CX | CY | IL |
| [A] | [mH] | [µH] | [µF] | [nF] | [mA] | |
| FN2080-1F | 1 | 22 | 490 | 0,33 | 4,7 | 0,66 |
| FN2080-3F | 3 | 9,8 | 160 | 0,47 | 4,7 | 0,66 |
| FN2080-6F | 6 | 7,8 | 110 | 1 | 4,7 | 0,66 |
| FN2080-10F | 10 | 4,5 | 60 | 1 | 4,7 | 0,66 |
| FN2080-12F | 12 | 3,25 | 50 | 1 | 4,7 | 0,66 |
| FN2080-16F | 16 | 2,8 | 43 | 1 | 4,7 | 0,66 |
| IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 250V AC, 50Hz | ||||||
|
||||||
| Approvals |
