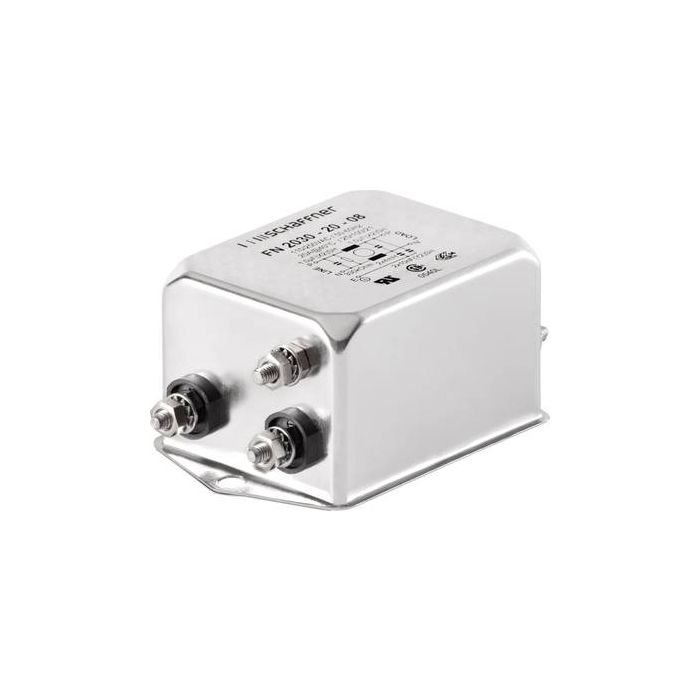

EMI NETFILTER 1 FASE 1 TRAPS 250V 20A MET M4 AANSLUITING
€ 55,41
€ 45,79
Artikelnummer
FN2030-20M
- ArtikelnummerFN2030-20M
- MerkSCHAFFNER
- Aantal 5+ € 49,86 € 41,21
Features
| • Single phase filters, one-stage, built in a metal housing • Faston plug terminal 6,3x0,8mm • Compact design • Universal application |
 |
| Technical Specifications |
|
|
| Continuous Operating Voltage, Max.: | 250V AC, 50/60Hz; 250V DC |
| Dielectric Strength, 2s | |
| Line To Ground: | 2kV AC |
| Line To Neutral: | 1,1kV DC |
| Temperature Range: | -25...+100°C |
|
|
| Part Nr. | IR | L | CX | CY | IL |
| [A] | [mH] | [µF] | [nF] | [mA] | |
| FN2030-1F | 1 | 20 | 0,22 | 2,2 | 0,31 |
| FN2030-3F | 3 | 14 | 0,33 | 3,3 | 0,47 |
| FN2030-4F | 4 | 14 | 0,33 | 3,3 | 0,47 |
| FN2030-6F | 6 | 8 | 0,47 | 4,7 | 0,66 |
| FN2030-8F | 8 | 8 | 0,47 | 4,7 | 0,66 |
| FN2030-10F | 10 | 8 | 0,47 | 4,7 | 0,66 |
| FN2030-12F | 12 | 4 | 1 | 10 | 0,79 |
| FN2030-16F | 16 | 4 | 1 | 10 | 0,79 |
| FN2030-20F | 20 | 4 | 1 | 10 | 0,79 |
| FN2030-20M | 20 | 4 | 1 | 10 | 0,79 |
| FN2030-30M | 30 | 2 | 1 | 10 | 0,79 |
| IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 250V AC, 50Hz | |||||
|
|||||
| Approvals |
    14 |
