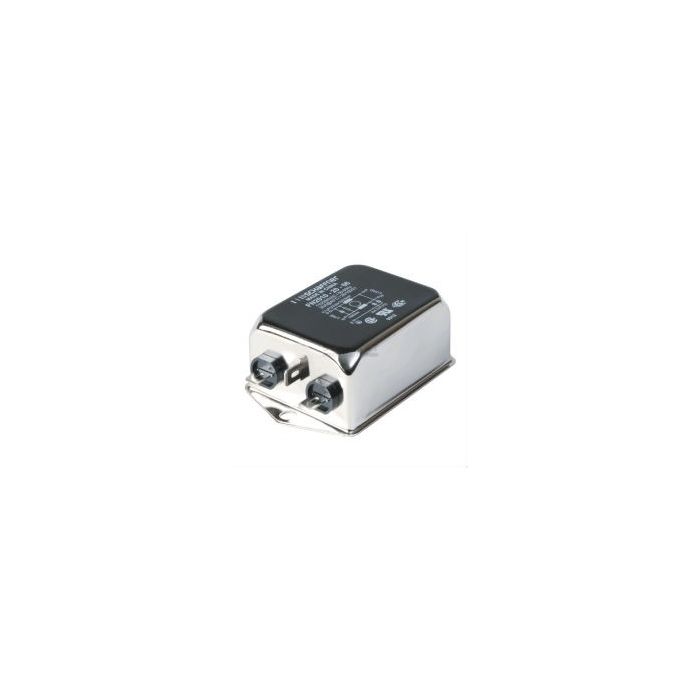

EMI NETFILTER 1 FASE 1 TRAPS 250V 10A MET 6,3MM FASTON AANSLUITING
€ 32,95
€ 27,23
Artikelnummer
FN2010-10F
- ArtikelnummerFN2010-10F
- MerkSCHAFFNER
- Aantal 5+ € 29,65 € 24,50
Features
| • Single phase filters, one-stage, built in a metal housing • Faston plug terminal 6,3x0,8mm • Compact design • Universal application • FN2010B_: for medical application |
 |
| Technical Specifications |
|
|
| Continuous Operating Voltage, Max.: | 250V AC, 50/60Hz |
| Dielectric Strength, 2s | |
| Line To Ground: | 2kV AC |
| Line To Ground B-Type: | 2,5kV AC |
| Line To Neutral: | 1,1kV AC |
| Temperature Range: | -25...+100°C |
|
|
| Part Nr. | IR | L | CX | CY | IL |
| [A] | [mH] | [µF] | [nF] | [mA] | |
| FN2010-1F | 1 | 12 | 0,1 | 4,7 | 0,66 |
| FN2010-3F | 3 | 2,5 | 0,1 | 4,7 | 0,66 |
| FN2010-6F | 6 | 1 | 0,1 | 4,7 | 0,66 |
| FN2010-10F | 10 | 0,8 | 0,1 | 4,7 | 0,66 |
| FN2010-12F | 12 | 0,7 | 0,1 | 4,7 | 0,66 |
| FN2010-16F | 16 | 0,7 | 0,1 | 4,7 | 0,66 |
| FN2010-20F | 20 | 0,6 | 0,1 | 4,7 | 0,66 |
| IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 250V AC, 50Hz | |||||
|
|||||
| Approvals |
