PARALLEL 1 POORT 25P / RS232 2 POORT 2 X 9P PCIE

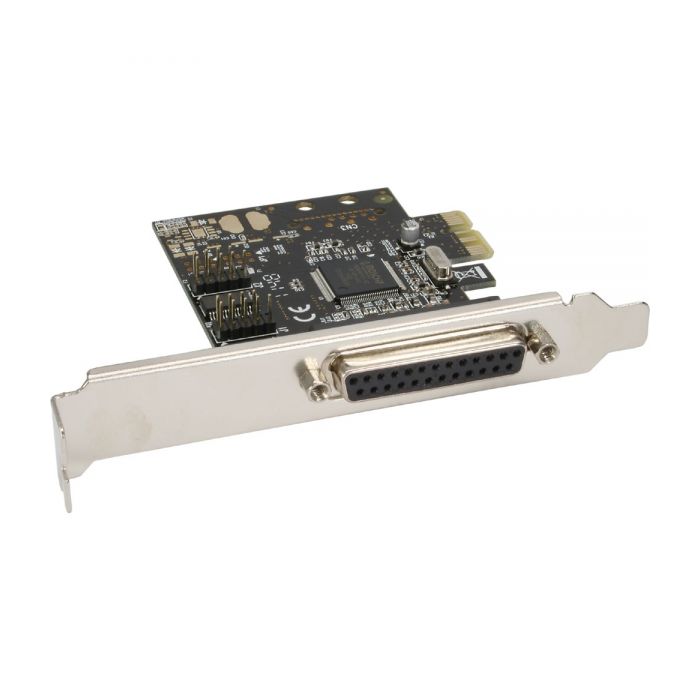

Interface card, InLine®, 1x 25-pin parallel + 2x 9-pin serial, PCIe (PCI-Express)

Completely conforms to PCI Express Basic Specification (Revision 1.0a)
Single Lane (1x) PCI-Express with data throughput up to 2.5 Gbps
Several cards may be integrated in one PC
Supports operation systems: Windows 2000, XP 32/64 Bit, Server 2003, Vista 32/64 Bit, Linux, Mac OS and DOS

Serial (RS-232) interface:

compatible to industry standards 16C450 / 16C550 UART
On-chip 256 byte deep FIFO transmission/receiver buffer for each port
Data transfer rates up to 250 Kbps for each port (special versions may support up to 1Mbps)
Supports hardware and software flow control
Supports 5,6,7 and 8 Bit serial format
Supports even, odd, none, space and mark parity
Supports 1 or 2 stop bit operation

Parallel interface

IEEE1284 compatible parallel port
Supports modi: SPP, PS2, EPP & ECP
Fast data transfer rates up to 1.5Mbps
Chipset: Moschip MCS9901CV-CC
