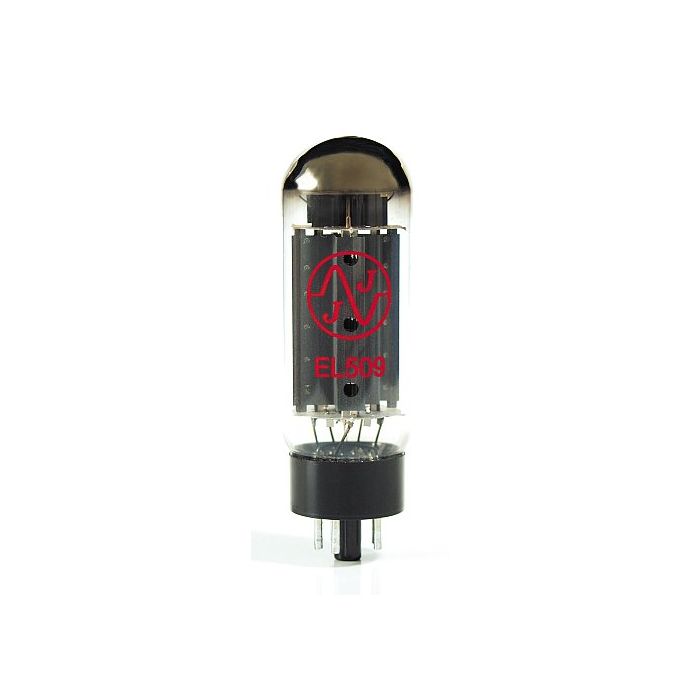

EINDBUIS 8P OKTAL BEAM PENTODE
€ 73,50
€ 60,74
Artikelnummer
EL509S
- ArtikelnummerEL509S
- MerkJJ ELECTRONIC
- Aantal 5+ € 66,14 € 54,66
OUTPUT POWER BEAM
PENTODE
Base: OCTAL
Uf = 6,3 V
If = 2 A
Typical characteristic:
Ua = 160 V
Ug2 = 160 V
Ug1 = -30 V
Ia = 200 mA
Ig2 = 10 mA
SHORT TERM MEASURING
(ABOUT 3 SEC.)
I = min 700 mA a.c.
Usat = 30 V a.c.
Limiting values:
Ua = 700 V
Ug2 = 700 V
Wg2 = 9 W
Ik = 500 mA
Ukf = 150 V
Wa+g2 = max. 42 W
Capacitances:
ca/g1 = 3 pF
PENTODE
Base: OCTAL
Uf = 6,3 V
If = 2 A
Typical characteristic:
Ua = 160 V
Ug2 = 160 V
Ug1 = -30 V
Ia = 200 mA
Ig2 = 10 mA
SHORT TERM MEASURING
(ABOUT 3 SEC.)
I = min 700 mA a.c.
Usat = 30 V a.c.
Limiting values:
Ua = 700 V
Ug2 = 700 V
Wg2 = 9 W
Ik = 500 mA
Ukf = 150 V
Wa+g2 = max. 42 W
Capacitances:
ca/g1 = 3 pF
