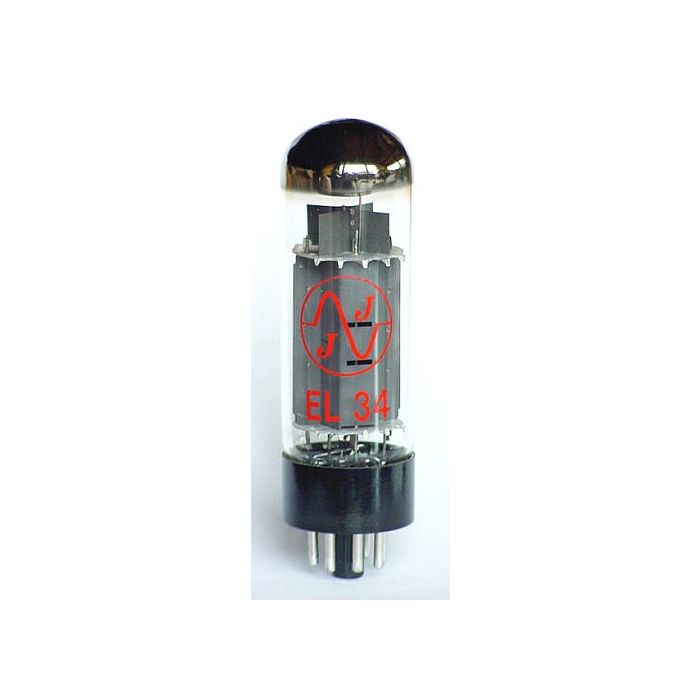

EINDBUIS 8P OKTAL OUTPUT PENTODE

A. F. OUTPUT PENTODE
Base: OCTAL
Uf = 6,3 V
If = ca 1,5 A
Typical
characteristic:
Ua = 250 V
Ug3 = 0 V
Ug2 = 265 V
Ug1 = -10 V; -13,5 V
(for EL34)
-13,5 V; -16,5 V
(for E34L)
Ia = 100 mA
Ig2 = 14,9 mA
S = 11 mA/V
Ri = 15 kÙ
ìg2/g1 = 11
Iaz (Ug1 = -30 V) < 7 mA
Limiting values:
Ua0 = 2000 V
Ua = 800 V
Wa(max) = 25 W
Ug20 = 800 V
Ug2 = 450 V
Wg2(max) = 8 W
Ik = 150 mA
Uk/f = 100 V
Rk/f = 20 kÙ
Capacitances:
cg1 = 15,5 pF
ca = 10 pF
ca/g1 = 1,3 pF
