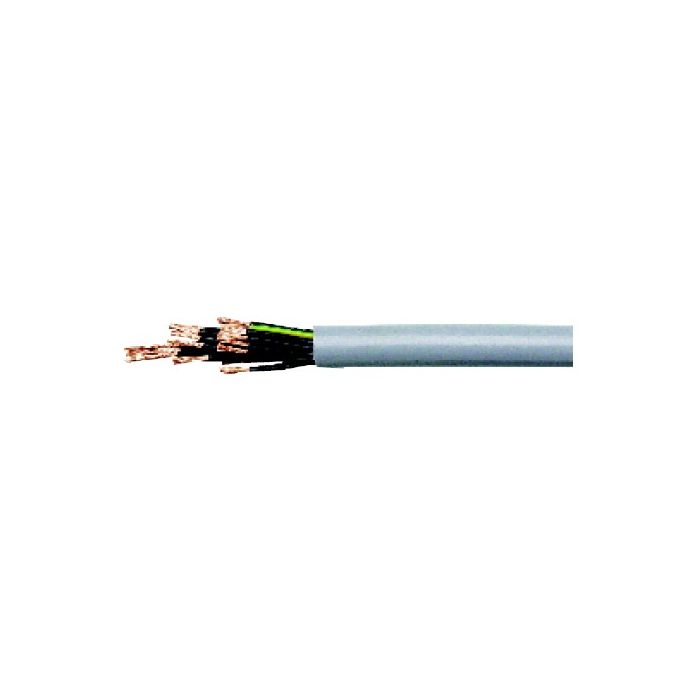

POWER MULTIKABEL 12X0.75MM2 GRIJS
€ 3,25
€ 2,69
Artikelnummer
EK12075
- ArtikelnummerEK12075
- MerkBrand
- Aantal 25+ € 2,93 € 2,42
Features
Control cable for general machinery, assembly lines, commercial equipment, conveyor units
Suitable for dry and damp spaces/do not install outdoors
RoHS compliant
Construction
PVC insulated wire with Cu strands according to VDE 0295 class 5/IEC Cl.5
PVC conductor and PVC jacket
Conductor marked with white identification markings
Flame resistant in accordance with IEC 332.1
Technical Specifications
Rated Voltage: 300V/500V
Test Voltage: 4000V
Conductor Cross-Section: 0,75mm2
Outer Diameter
12-Wire: 10,1mm
Conductor Composition: 24x0,195mm
Colour of Jacket: Silver-Grey (RA 7001)
Temperature Range
Moving:
-5...+70°C
Fixed Installation:
-30...+70°C
