VOORVERSTERKERBUIS 9P NOVAL DUBBEL TRIODE

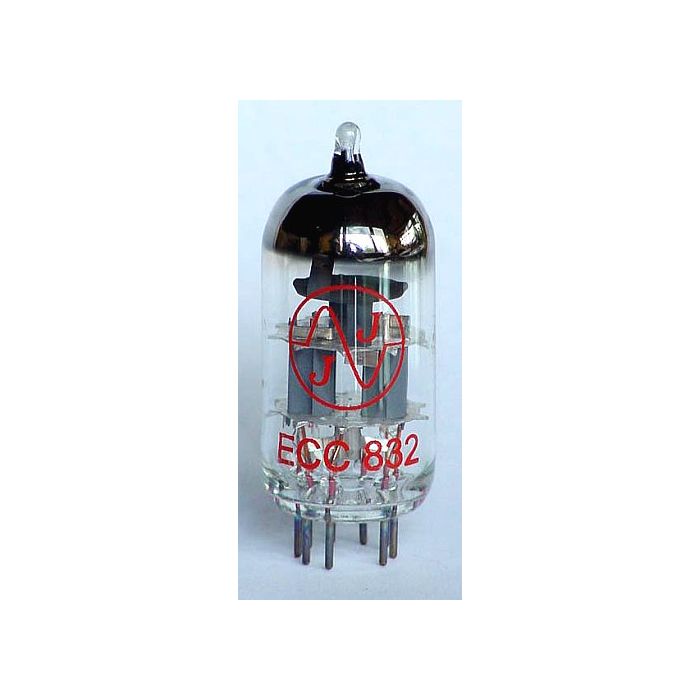

ECC832
Combinated double
triode for special
purposes
Base: NOVAL
Uf = 6,3 or 12,6 V
If = 300 or 150 mA
Typical
characteristic:
system I. system II.
(pin 6,7,8) (pin 1,2,3)
Ua = 250 V 250 V
Ug = -2 V -8,5 V
Ia = 1,2 mA 10,5 mA
S = 1,6 mA/V 2,2 mA/V
Ri = 62,5 kÙ 7,7 kÙ
ì = 100 17
Limiting values:
Capacitances:
Please, refer to specs. of
ECC 83 (for system I) or
ECC 82 (for system II)
Note: ECC 823
Possibility to supply this tube
„on reqest“ of customer with
reverse pin order pin # 1, 2, 3 -
ECC 83, pin # 6, 7, 8 - ECC 82.
There is not international equivalent
of this tube. In JJ cataloques
is under ECC 823.
