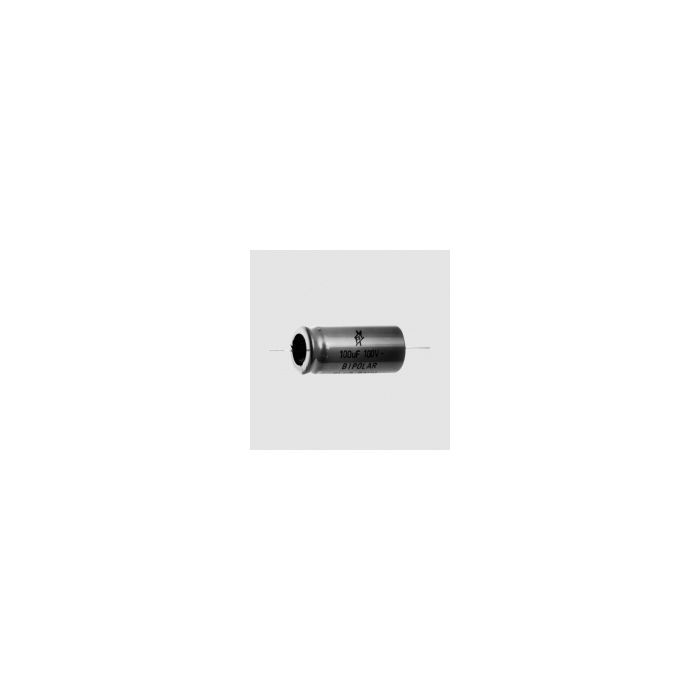

ELCO BIPOLAR 1UF 100V

Features

• High purity aluminium foil etched with controlled pore structure
• Axial, bipolar, insulated
• Small dimensions for normal requirements
• Low loss factor
• Low capacitance tolerance
• Good ripple current

Technical Specifications
Rated Voltage: 100V DC (35V AC)
Capacitance Tolerance: ±20%
Temperature Range: -40...+85°C
Climatic Category (DIN 40040): 40/085/56
Life Expectancy
at +40°C: >50.000h
at +85°C: >2.500h
at +105°C: >500h

Dimensions L= 20mm D= 10mm and 2 x 40mm wire
