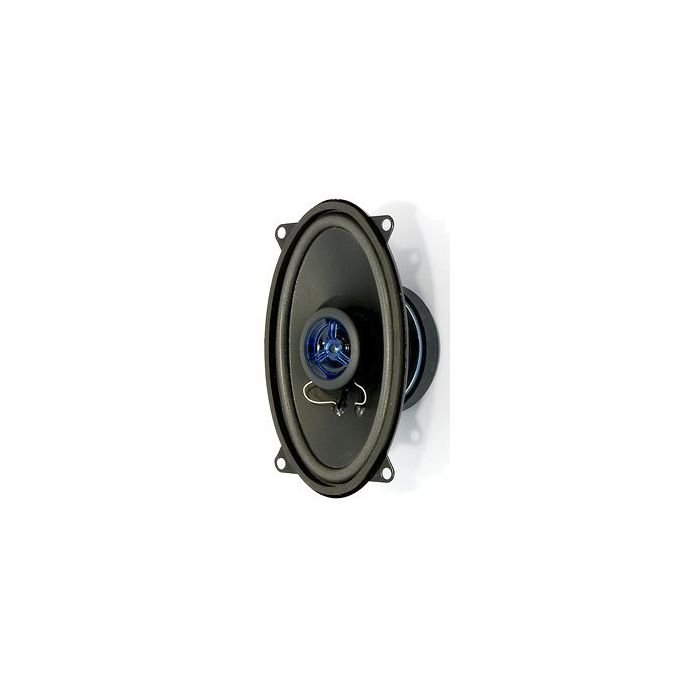

SPEAKER BREEDBAND 4 OHM 30/50W 65-22000HZ 86DB 90X150MM

Typical applications
•Vehicles
•Mobile homes


Attributes
•Moisturised cone
•Metal basket
•Coaxial speaker


Technical Data


Rated power
30 W

Maximum power
50 W

Nominal impedance Z
4 Ohm

Frequency response
65–22000 Hz



Mean sound pressure level
86 dB (1 W/1 m)

Opening angle (-6 dB)
140°/4000 Hz hor.
180°/4000 Hz vert.

Excursion limit
+/−1,5 mm

Resonance frequency fs
90 Hz

Magnetic induction
1 T

Magnetic flux
190 µWb

Height of front pole-plate
3 mm

Voice coil diameter
20 mm / 14 mm

Height of winding
5 mm

Cutout diameter
88 x 144 mm (oval)

Net weight
0,423 kg

Connections
4,8 x 0,8 mm (+)
2,8 x 0,8 mm (−)

Temperature range
−25 ... 70 °C
