DUBBELE VENTILATOR 12V 120X25MM MET TIMER EN REGELAAR

The TTC‑SC20(B)V2+ is specially designed for use in motorhomes and caravans. With two 120 mm fans, it provides effective ventilation in critical areas, e.g. behind the refrigerator, behind interior panelling or in small storage spaces. The V2+ version features a modern control unit with integrated rectifier, which ensures a stable and reliable 12 V supply – a separate rectifier is no longer necessary.

The Titan double fan noticeably improves the cooling performance of the refrigerator, and energy savings of up to 40 % are possible with absorption refrigerators. Both automatic control of the fan speed by means of the temperature sensor supplied and manual control are possible. With temperature control (AUTO), the fans switch on automatically and also switch off again automatically when the temperature drops below 20°C. The fan speed depends on the ambient temperature. The timer function allows the fans to run on for a certain period of time (max. 4 hours); this is possible both in automatic mode with temperature-controlled fan speed and in manual mode at the previously selected speed level. After this run-on period, the fans then switch off automatically.
You can use this double fan in your motorhome, caravan, camper van or even in a truck. Ideal as a refrigerator fan or also for ventilation in the home cinema, audio/video cabinet, the home server, as network cooling and for much more. The double fan is pre-assembled in the aluminium mounting frame.

• Refrigerator or multifunctional double fan
• with rectifier
• Universal voltage: 12V
• flexible and intelligent speed mode
• automatic temperature control
• below 20°C (68°F) the fans turn off automatically
• above 45°C (113°F) the fans automatically rotate at maximum speed
• 6-step manual control to adapt to special needs
• 6-stage timer setting to extend the fan run-on time
• Powerful, temperature-controlled double fan
• Automatic control with high-quality speed controller in aluminium housing and temperature sensor or manual speed control - as required
• 2 quiet 9-blade Kukri fans 120x120x25mm for quiet operation
• External dimensions incl. frame = 25x12x3.2cm (WxHxD)
• Variable mounting rails are attached to the left and right sides of the frame.
• dust-protected and protected against water jets according to IP 55, therefore also suitable for outdoor use

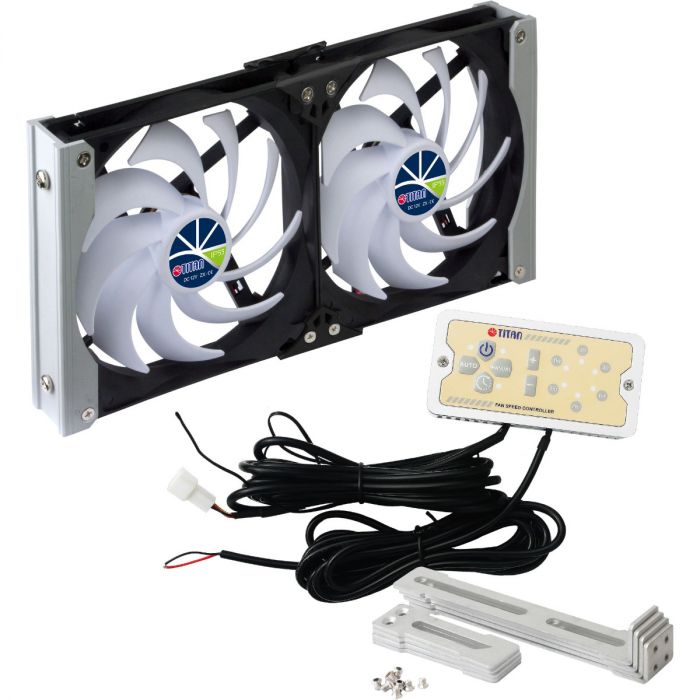

• Scope of delivery: double fan, pre-assembled in aluminium frame, aluminium speed controller, fixing material
• Speed controller: input voltage: 12V DC, output voltage: 7-13.8V DC, max. output current: 1A, current consumption: 0.05A, temperature measurement: 20-45°C
• Kukri fan (2 pieces): Outer dimensions: 120x120x25mm, input voltage: 7V DC, rated voltage: 12V DC, operating voltage range: 7-13.8V DC, rated current: 0.56A, power consumption: 6,72W, fan speed: 400-2000 ± 10% rpm, airflow 41.63-205.79m³/h, noise level: 8-32.9dBA, bearing type: Z-bearing, life time (MTBF): 60000hrs.
• Cable length: 1m
• Mounting sets incl.
