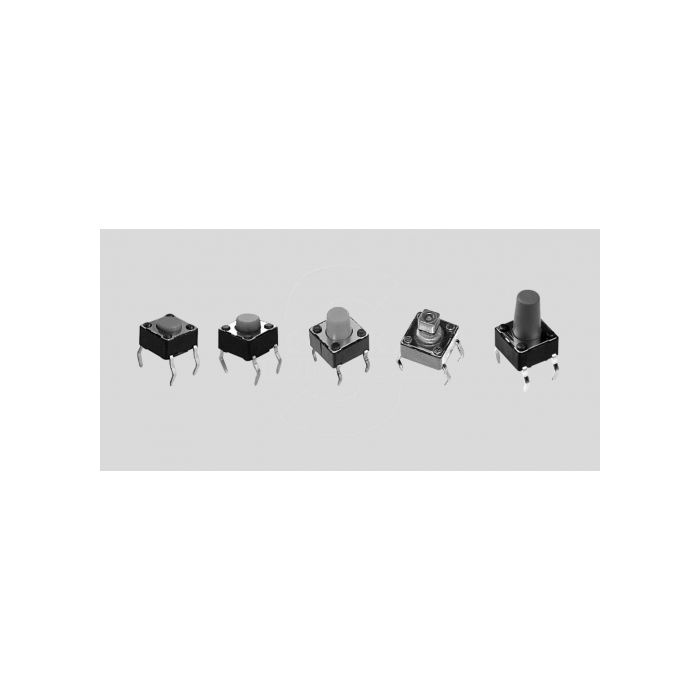

MOMENT SCHAKELAAR 1 X MAAK 6.0X6.0X3.5MM BOUTON 1.5MM
€ 1,95
€ 1,61
Artikelnummer
DTS62R
- ArtikelnummerDTS62R
- MerkDIPTRONICS
- Aantal 10+ € 1,74 € 1,44
Tact Switch PC Horizontal 5mm 2,6N
Features
Single pole input key with an SPST-NO contact
Prevents formed terminal pins (snap-in) falling out
For PCB assembly
Particularly small dimensions
Data and signal technology, measuring and controlling, membrane keyboards
Technical Specifications
Switching Voltage, Max.: 12V DC
Switching Current, Max.: 50mA
Test Voltage, 1min.: 250V A
Operating Life with Switching Capacity: 200,000 Operations
Contact Resistance, Max.: 100mW
Insulation Resistance, Min.: 100MW/500V DC
Type of Switching: 1 NO Contact
Operating Force: 1N
Operating Path: 0,25mm +0,2, -0,1
Insulation Material: Thermoplastic Nylon, UL94V-0
Contact Surface: Phosphor Bronze Silver-plated
Solder Temperature and Duration, Max.: 260°C for 5s
Operating Temperature: -25...+70°C
