DIN-RAIL VOEDING 60W 13.8V/2,8A MET ACCULADER EN UPS FUNCTIE

Universal AC input / Full range
EProtections: Short circuit / Overload / Over voltage
EBattery low protection / Battery reverse polarity protection
by fuse
ECan be installed on DIN rail TS-35/7.5 or 15
EAlarm signal for AC OK and Battery low
via TTL open collector, optional via relay)
ECooling by free air convection
EPass LPS
ELED indicator for power on
E100% full load burn-in test

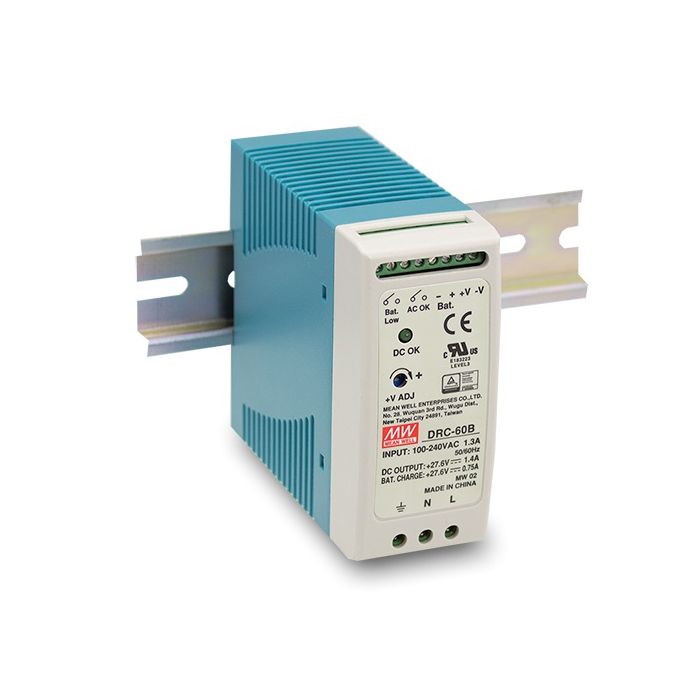

DRC-60 is a 60W AC/DC DIN rail type security power supply series. In addition to the primary output, there
is a charger output with a smaller rated current, enabling the backup power supply application the security
access systems require. DRC-60 accepts the universal input between 90VAC and 264VAC, and supplies
13.8VDC and 27.6VDC at output, respectively. With the efficiency up to 88%, it can operate with air
convection cooling under -30 through 70 . In addition to the key protection features ¢J ¢J such as overload
protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse),
the alarm signal for AC OK and battery low signaling is provided, via TTL open collector output for the
standard model ( via relay contact output as the optional model), to facilitate the system design.

Vermogen : : 60W

Uitgang 1
dc spanning : 13,8V
Stroom (max.) : 2.8A
Spanning instelbaar 12 ~ 15V
Ripple & Noise (max.) : 120mVp-p

Uitgang 2
dc spanning : 13,8V
Stroom (max.) : 1.5A

Ingang spanning : 90 ~ 264VAC 127 ~ 370VDC
Frequentie : 47 ~ 63Hz
