SPEAKER DRIVER MID 8 OHM 100/150W 500-12000HZ 102DB 110MM
€ 399,00
€ 329,75
Artikelnummer
DR45N
- ArtikelnummerDR45N
- MerkVISATON
- Aantal 3+ € 379,04 € 313,26

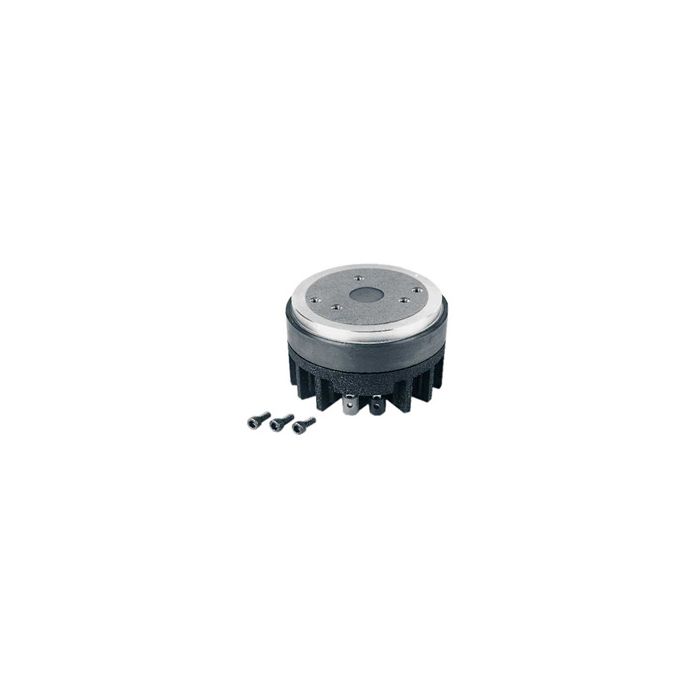

Professional 1\" driver with titanium dome, in conjunction with the exponential horn system M 300, as midrange driver above 800 Hz. The 40 mm aluminium-voice-coil and the heavy duty magnet drive are making this system suitable for professional horn-driver units with the required high efficiency and high power handling. The very linear frequency response of this horn-driver unit is also matching the demands of highly professional high end applications.
Nominal power handling with high pass 100 W (12 dB/Okt.; 1000 Hz)
Peak power handling with high pass 150 W (12 dB/Okt.; 1000 Hz)
Nominal impedance Z 8 Ohm
Frequency response 50012000 Hz
Mean sound pressure level 102 dB (1 W/1 m)
Resonance frequency fs 600 Hz
Magnetic induction 1,55 T
Magnetic flux 90 µWb
Voice coil diameter 40 mm
Net weight 2,8 kg
D.C. resistance Rdc 6,2 Ohm
Inductance of the voice coil L 0,1 m
Nominal power handling with high pass 100 W (12 dB/Okt.; 1000 Hz)
Peak power handling with high pass 150 W (12 dB/Okt.; 1000 Hz)
Nominal impedance Z 8 Ohm
Frequency response 50012000 Hz
Mean sound pressure level 102 dB (1 W/1 m)
Resonance frequency fs 600 Hz
Magnetic induction 1,55 T
Magnetic flux 90 µWb
Voice coil diameter 40 mm
Net weight 2,8 kg
D.C. resistance Rdc 6,2 Ohm
Inductance of the voice coil L 0,1 m
