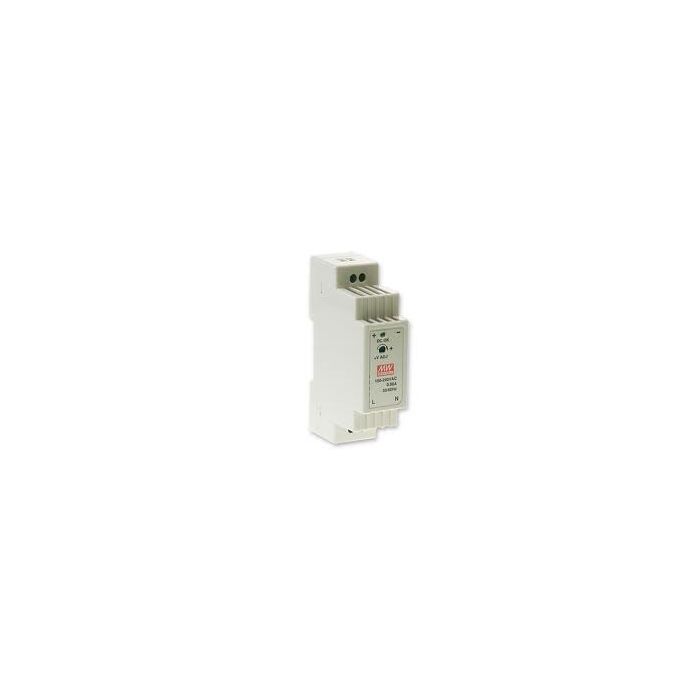

DIN-RAIL VOEDING 25MM 15W 15V/1A
€ 22,51
€ 18,60
Artikelnummer
DR1515
- ArtikelnummerDR1515
- MerkMEANWELL
- Aantal 3+ € 21,38 € 17,67
Universal AC input/Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Isolation class
LED indicator for power on
100% full load burn-in test
Technical Specifications
Input Voltage: 85...264V AC (47...63Hz) 120...370V DC
Input Inrush Current, Max.: 65A
Efficiency (Typ.) 83,5%
uitgangsspanning: 15V +/-1%
uitgangsstroom: 1,00A
max. vermogen: 15W
afmetingen: 25 x 93 x 56mm
gewicht: 100g
werktemperatuur: -20°C ~ 60°C
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Isolation class
LED indicator for power on
100% full load burn-in test
Technical Specifications
Input Voltage: 85...264V AC (47...63Hz) 120...370V DC
Input Inrush Current, Max.: 65A
Efficiency (Typ.) 83,5%
uitgangsspanning: 15V +/-1%
uitgangsstroom: 1,00A
max. vermogen: 15W
afmetingen: 25 x 93 x 56mm
gewicht: 100g
werktemperatuur: -20°C ~ 60°C
