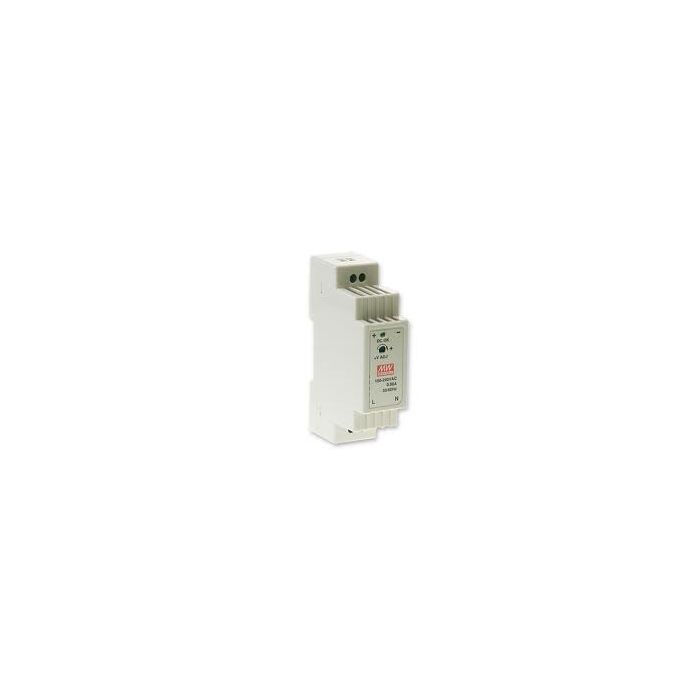

DIN-RAIL VOEDING 25MM 12W 5V/2,4A

Universal AC input/Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Isolation class
LED indicator for power on
100% full load burn-in test

Technical Specifications
Input Voltage: 85...264V AC (47...63Hz) 120...370V DC
Input Inrush Current, Max.: 65A
Efficiency (Typ.) 77%

uitgangsspanning: 5V +/-2%
uitgangsstroom: 2,4A
max. vermogen: 12W
afmetingen: 25 x 93 x 56mm
gewicht: 100g
werktemperatuur: -20°C ~ 60°C
